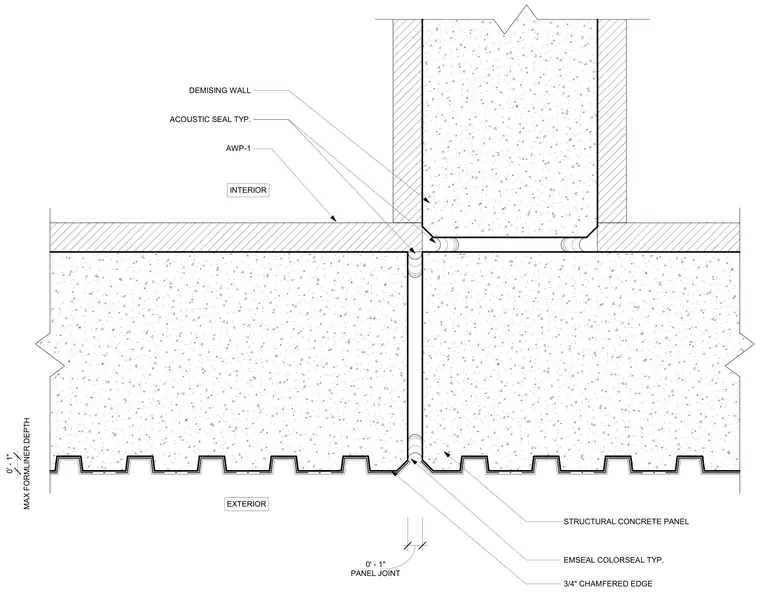

This plan detail shows an exterior structural concrete panel joint meeting a demising wall. The exterior joint features a maximum formliner depth of zero feet, one inch, detailed with a three-quarter-inch chamfered edge and an Emseal Colorseal typically applied. The interior junction incorporates an acoustic seal typically at the demising wall and wall panel AWP-1.
EXTERIOR PANEL JOINT 0' - 1" MAX FORMLINER DEPTH 0' - 1" 3/4" CHAMFERED EDGE STRUCTURAL CONCRETE PANEL EMSEAL COLORSEAL TYP. INTERIOR ACOUSTIC SEAL TYP. DEMISING WALL AWP-1
