Steel Column Connection with Doubler Plate and Angled Stiffeners

Materials

Steel

Elements

Connections / Plates

Connections

Shear Tab / Single Plate Welded Connection

About this detail

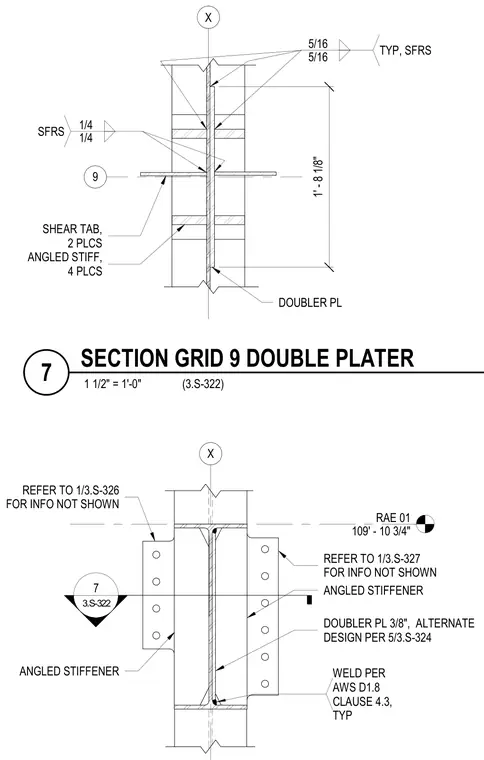

A structural steel column connection at grid line 9 is reinforced with a three-eighths-inch doubler plate and four angled stiffeners. Shear tabs are provided in two places for beam framing connections. Welds are specified as five-sixteenths-inch and one-quarter-inch fillet welds, with welding executed per AWS D1.8 Clause 4.3. Alternate design requirements reference detail 5/3.S-324, with additional information cross-referenced on sheets 1/3.S-326 and 1/3.S-327.
