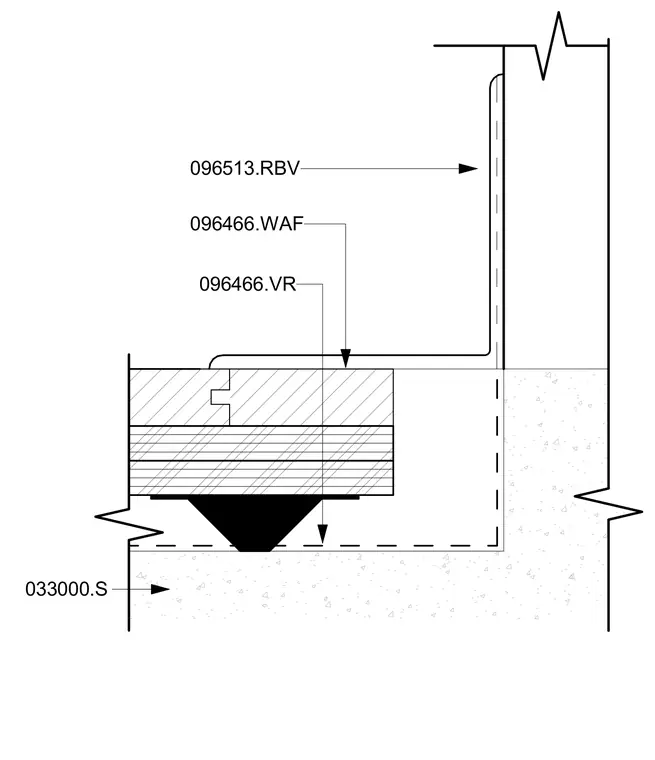

A resilient base component denoted by code 096513.RBV attaches along the vertical wall surface. Flooring materials indicated by code 096466.WAF lay horizontally over subflooring layers. A transition or adhesive element designated by code 096466.VR is positioned beneath the flooring assembly. The entire buildup bears upon a concrete substrate designated by code 033000.S.
