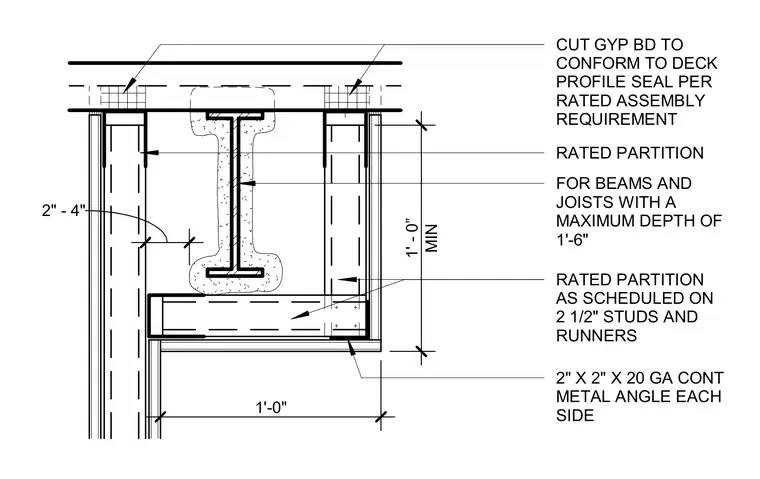

A fire-rated gypsum board partition terminates alongside a structural steel beam and deck assembly. The gypsum board is cut to conform to the profile of the deck above with a joint seal installed per rated assembly requirements. The partition framing consists of two-and-a-half-inch studs and runners. Continuous two-inch by two-inch by twenty-gauge metal angles are secured to each side of the partition where it meets the structural framing.
2" X 2" X 20 GA CONT METAL ANGLE EACH SIDE MIN 1' - 0” 2" - 4" RATED PARTITION AS SCHEDULED ON 2 1/2" STUDS AND RUNNERS FOR BEAMS AND JOISTS WITH A MAXIMUM DEPTH OF 1'-6" RATED PARTITION CUT GYP BD TO CONFORM TO DECK PROFILE SEAL PER RATED ASSEMBLY REQUIREMENT 1'-0"
