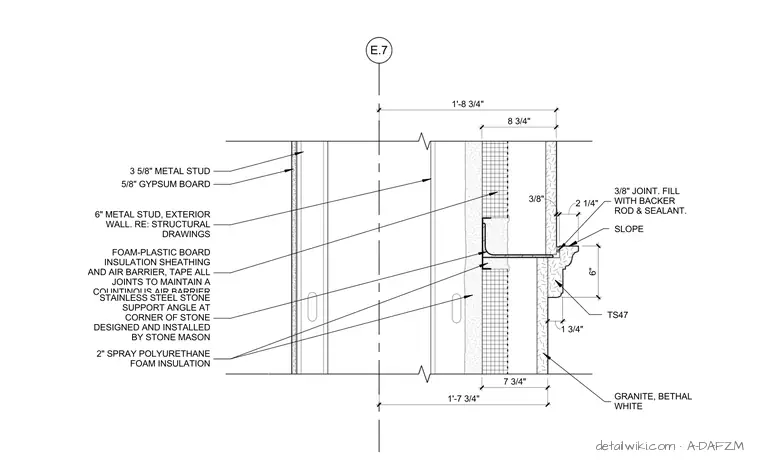

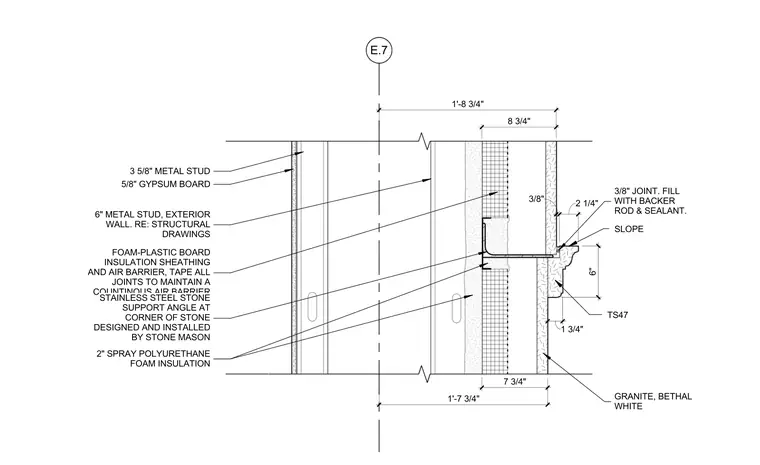

This assembly details a granite stone trim connection to a exterior metal stud wall. The backup wall consists of a six-inch metal stud exterior wall framed with five-eighths-inch gypsum board on the interior, and sheathed with foam-plastic board insulation serving as an air barrier with taped joints. Two inches of spray polyurethane foam insulation fills the stud cavity. A stainless steel stone support angle is anchored at the corner of the stone, designed and installed by the stone mason, supporting Bethal White granite panels. A three-eighths-inch joint filled with backer rod and sealant accommodates movement.
E.7 E.7 3/8" 2 1/4" 3 5/8" METAL STUD 5/8" GYPSUM BOARD 6" METAL STUD, EXTERIOR WALL. RE: STRUCTURAL DRAWINGS 2" SPRAY POLYURETHANE FOAM INSULATION 2" SPRAY POLYURETHANE FOAM INSULATION FOAM-PLASTIC BOARD INSULATION SHEATHING AND AIR BARRIER, TAPE ALL JOINTS TO MAINTAIN A COUNTINOUS AIR BARRIER STAINLESS STEEL STONE SUPPORT ANGLE AT CORNER OF STONE DESIGNED AND INSTALLED BY STONE MASON 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. GRANITE, BETHAL WHITE 8 3/4" 7 3/4" 1'-8 3/4" 1'-7 3/4" 6" 1 3/4" TS47 SLOPE
