An interior flashing features a three-quarter-inch deep V-bend for drainage and extends approximately two inches beyond the sides, riveted to the terminal only with the unit side left free sliding. A threshold fastens to the terminal only, with the unit side free sliding and trim fitted around the terminal door jambs. An exterior flashing utilizes Fabri Cote material and is caulked watertight all round at the face of the terminal. The assembly provides a seven-foot-seven-inch clear height from the finished floor rotunda to the finished ceiling rotunda.

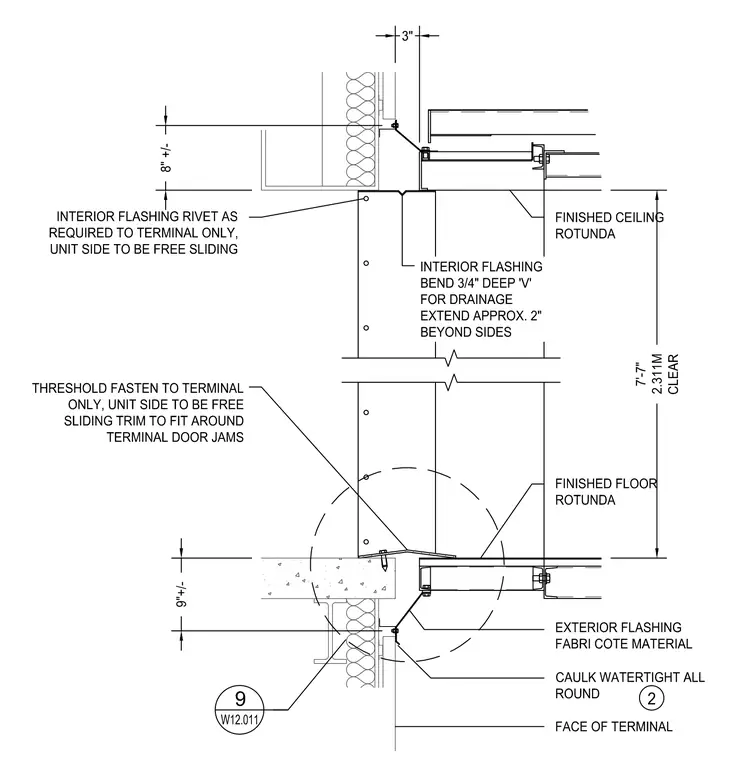

7'-7" 2.311M CLEAR 9"+/- 8" +/- 3" FINISHED CEILING ROTUNDA INTERIOR FLASHING BEND 3/4" DEEP 'V' FOR DRAINAGE EXTEND APPROX. 2" BEYOND SIDES FINISHED FLOOR ROTUNDA EXTERIOR FLASHING FABRI COTE MATERIAL CAULK WATERTIGHT ALL ROUND FACE OF TERMINAL THRESHOLD FASTEN TO TERMINAL ONLY, UNIT SIDE TO BE FREE SLIDING TRIM TO FIT AROUND TERMINAL DOOR JAMS INTERIOR FLASHING RIVET AS REQUIRED TO TERMINAL ONLY, UNIT SIDE TO BE FREE SLIDING 2 9 W12.011
