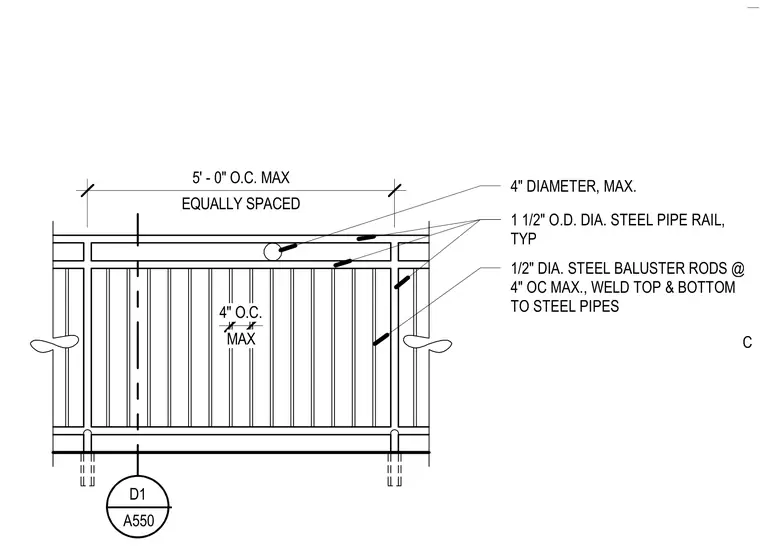

This elevation detail shows a typical steel pipe guardrail constructed with one and one-half inch outer diameter steel pipe rails. One-half inch diameter steel baluster rods are spaced at a maximum of four inches on center between the horizontal rails. All balusters are welded top and bottom to the steel pipes. The overall rail assembly spans a maximum of five feet on center between supports.
EQUALLY SPACED 5' - 0" O.C. MAX D1 A550 ____ MAX 4" O.C. 1 1/2" O.D. DIA. STEEL PIPE RAIL, TYP 4" DIAMETER, MAX. 1/2" DIA. STEEL BALUSTER RODS @ 4" OC MAX., WELD TOP & BOTTOM TO STEEL PIPES C
