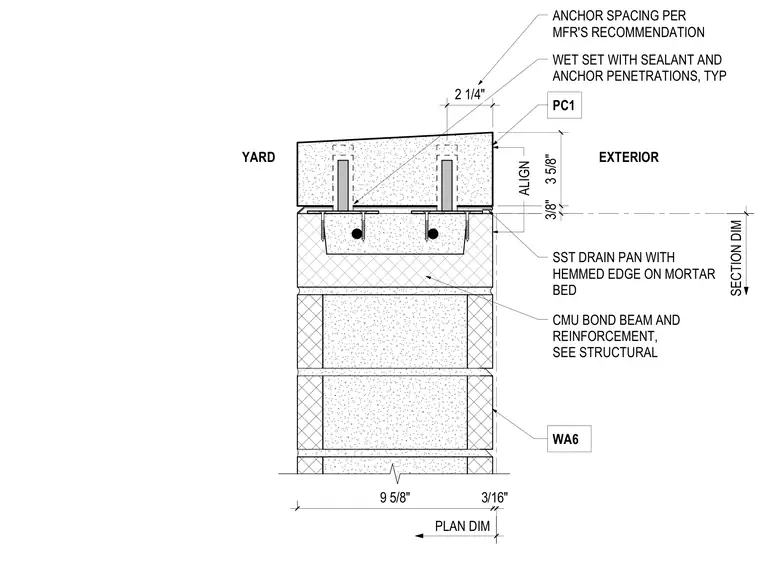

A precast concrete coping cap rests on a stainless steel drain pan with a hemmed edge set in a mortar bed over the top of a concrete masonry unit wall. The wall features a reinforced CMU bond beam with horizontal reinforcing bars, coordinated with anchor spacing per the manufacturer's recommendation and wet-set with sealant at anchor penetrations. The coping is aligned to the exterior face with specific vertical and plan dimensions.
PLAN DIM WA6 SECTION DIM CMU BOND BEAM AND REINFORCEMENT, SEE STRUCTURAL 9 5/8" 3/16" ALIGN 3 5/8" 3/8" SST DRAIN PAN WITH HEMMED EDGE ON MORTAR BED PC1 ANCHOR SPACING PER MFR'S RECOMMENDATION WET SET WITH SEALANT AND ANCHOR PENETRATIONS, TYP EXTERIOR YARD 2 1/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
