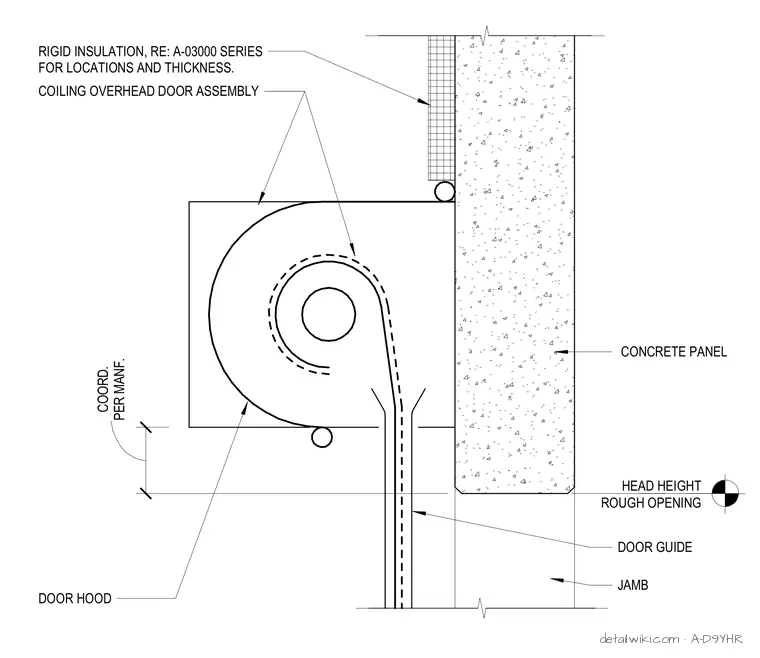

This assembly features a coiling overhead door hood mounted adjacent to a concrete panel wall. The door guide is positioned at the jamb, with the rough opening head height coordinated per the manufacturer's requirements. Rigid insulation is applied to the face of the concrete panel, with specific locations and thicknesses referenced in the A-03000 series drawings.
Text on the drawing
CONCRETE PANEL COILING OVERHEAD DOOR ASSEMBLY DOOR HOOD JAMB DOOR GUIDE HEAD HEIGHT ROUGH OPENING PER MANF. COORD. RIGID INSULATION, RE: A-03000 SERIES FOR LOCATIONS AND THICKNESS.
