Dog Run Curb Section and Waterproofing Detail

Elements

About this detail

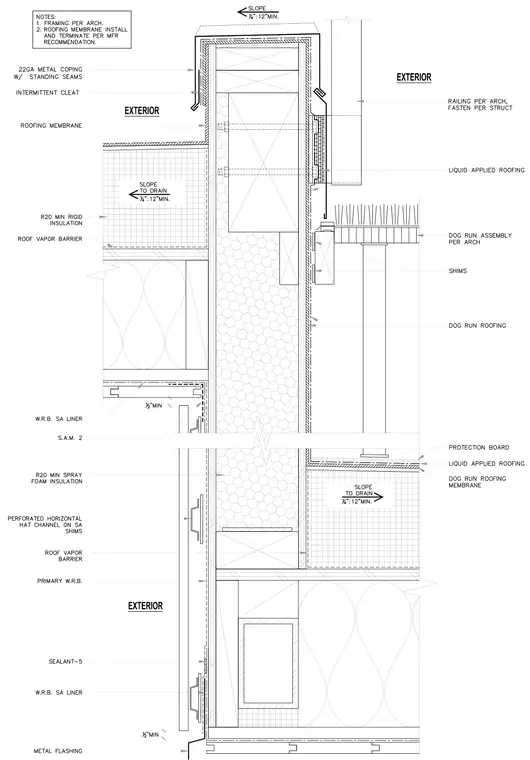

This wall section details a dog run curb assembly featuring a twenty-two gauge metal coping with standing seams secured by intermittent cleats over framing per architecture. The roof assembly incorporates a roofing membrane, a minimum R-twenty rigid insulation layer, roof vapor barrier, and a slope to drain of one-quarter inch per twelve inches minimum. The vertical wall utilizes a weather-resistive barrier self-adhered liner, self-adhered membrane, a minimum R-twenty spray foam insulation, and perforated horizontal hat channels on self-adhered shims. The dog run floor assembly includes protection board, liquid-applied roofing, and dog run roofing membrane supported over shims.
