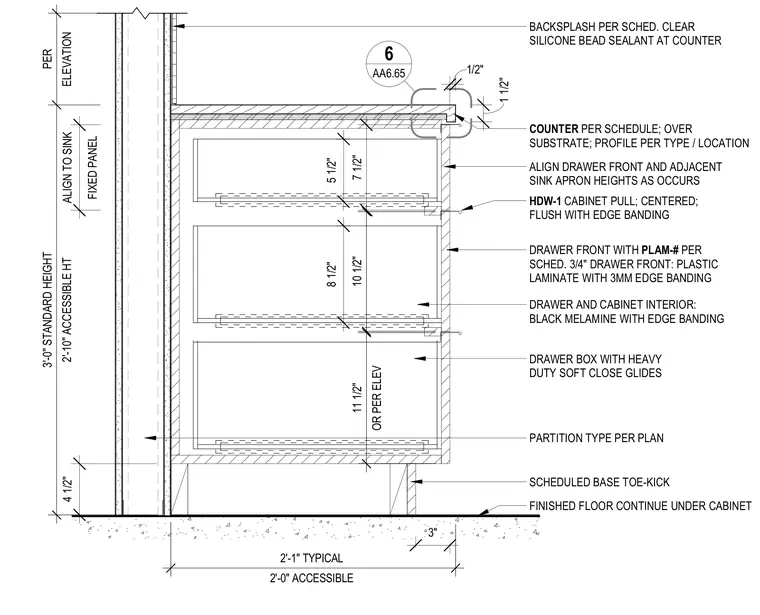

A three-drawer base cabinet anchors against a partition wall in this interior millwork assembly. Three-quarter-inch plastic laminate drawer fronts feature three-millimeter edge banding, a black melamine interior, and heavy-duty soft-close glides. A scheduled countertop sits over the substrate with a profile per type and location, sealed with a clear silicone bead at the backsplash. The unit rests on a scheduled base toe-kick over the finished floor which continues underneath the cabinet.
COUNTER PER SCHEDULE; OVER SUBSTRATE; PROFILE PER TYPE / LOCATION HDW-1 CABINET PULL; CENTERED; FLUSH WITH EDGE BANDING DRAWER FRONT WITH PLAM-# PER SCHED. 3/4" DRAWER FRONT: PLASTIC LAMINATE WITH 3MM EDGE BANDING ELEVATION PER 2'-10" ACCESSIBLE HT 3'-0" STANDARD HEIGHT DRAWER BOX WITH HEAVY DUTY SOFT CLOSE GLIDES ALIGN DRAWER FRONT AND ADJACENT SINK APRON HEIGHTS AS OCCURS 7 1/2" PARTITION TYPE PER PLAN BACKSPLASH PER SCHED. CLEAR SILICONE BEAD SEALANT AT COUNTER 10 1/2" OR PER ELEV 11 1/2" 2'-0" ACCESSIBLE 2'-1" TYPICAL DRAWER AND CABINET INTERIOR: BLACK MELAMINE WITH EDGE BANDING 3" 1 1/2" FINISHED FLOOR CONTINUE UNDER CABINET SCHEDULED BASE TOE-KICK 4 1/2" 5 1/2" 8 1/2" AA6.65 6 1/2" FIXED PANEL ALIGN TO SINK
