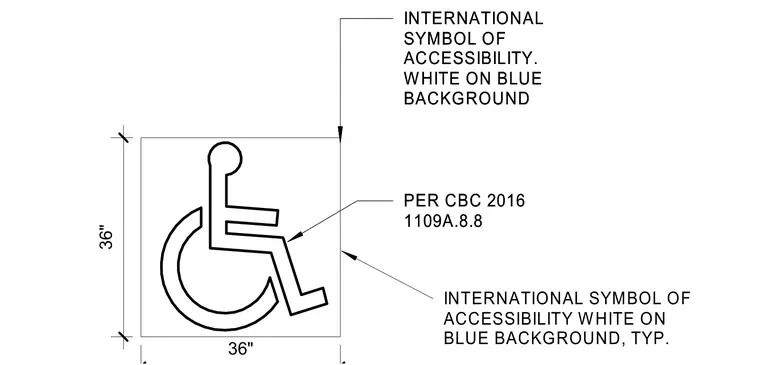

The pavement marking layout for an accessible parking stall features the International Symbol of Accessibility centered within a thirty-six by thirty-six inch square. The marking requires a white symbol on a blue background in accordance with California Building Code Section 1109A.8.8. Dimensions of thirty-six inches are indicated for both the width and height of the pavement sign.
36" 36" PER CBC 2016 1109A.8.8 INTERNATIONAL SYMBOL OF ACCESSIBILITY WHITE ON BLUE BACKGROUND, TYP. INTERNATIONAL SYMBOL OF ACCESSIBILITY. WHITE ON BLUE BACKGROUND PER CBC 2016 1109A.8.8 INTERNATIONAL SYMBOL OF ACCESSIBILITY. WHITE ON BLUE BACKGROUND
