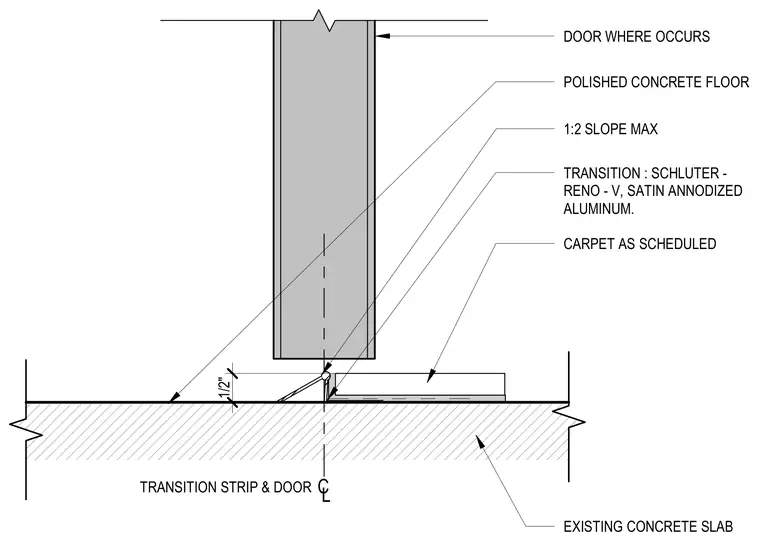

An existing concrete slab supports a polished concrete floor on one side and scheduled carpet on the other. A Schluter-Reno-V satin anodized aluminum transition strip bridges the change in floor finish at the centerline of the door location. The assembly accommodates a maximum one-to-two slope and provides a one-half inch clearance height.
POLISHED CONCRETE FLOOR EXISTING CONCRETE SLAB CARPET AS SCHEDULED 1:2 SLOPE MAX DOOR WHERE OCCURS TRANSITION : SCHLUTER - RENO - V, SATIN ANNODIZED ALUMINUM. C L TRANSITION STRIP & DOOR 1/2"
