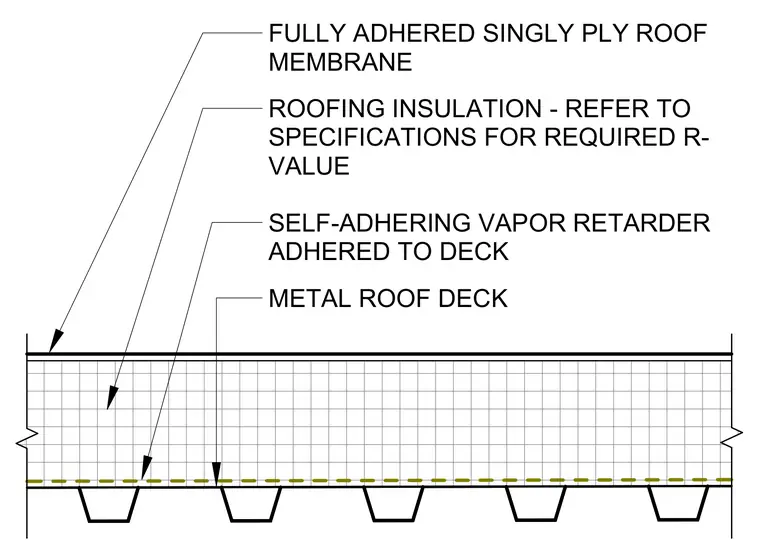

A fully adhered single-ply roof membrane sits on top of roofing insulation, which is specified for required R-value. A self-adhering vapor retarder is applied directly over the metal roof deck to complete the layered assembly.
METAL ROOF DECK ROOFING INSULATION - REFER TO SPECIFICATIONS FOR REQUIRED R- VALUE SELF-ADHERING VAPOR RETARDER ADHERED TO DECK FULLY ADHERED SINGLY PLY ROOF MEMBRANE
