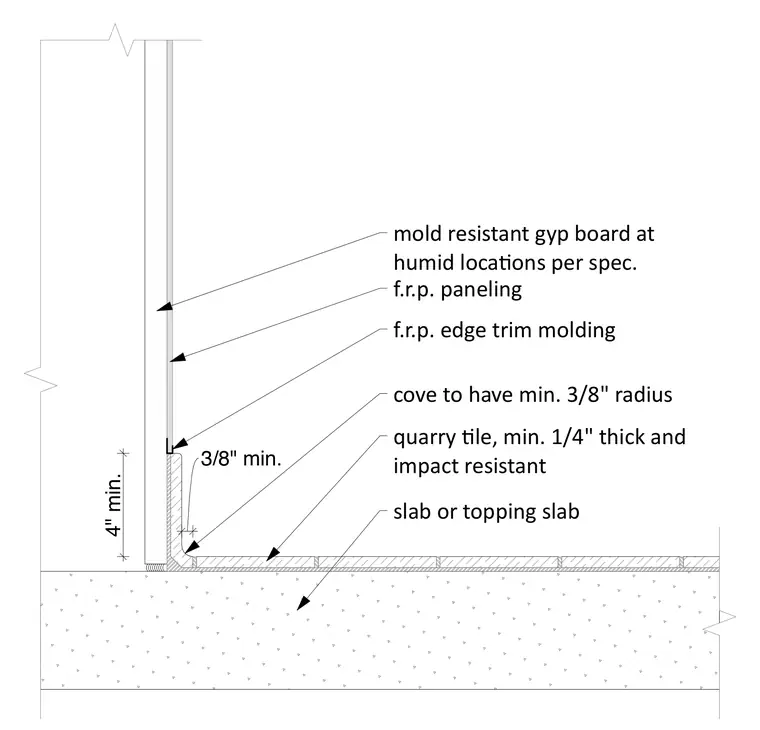

The assembly features mold-resistant gypsum board at humid locations backed by fiber reinforced plastic paneling secured with an edge trim molding. The floor finish consists of a minimum quarter-inch thick impact-resistant quarry tile installed over a concrete slab or topping slab. The tile transitions into the wall with a coved base having a minimum three-eighths-inch radius and a minimum four-inch height above the finished floor.
4" min. 3/8" min. cove to have min. 3/8" radius quarry Ɵle, min. 1/4" thick and impact resistant f.r.p. edge trim molding f.r.p. paneling mold resistant gyp board at humid loca Ɵons per spec. slab or topping slab
