Elevation - Sst Handrail With Ptd Mtl Picket At Landing

Materials

Elements

About this detail

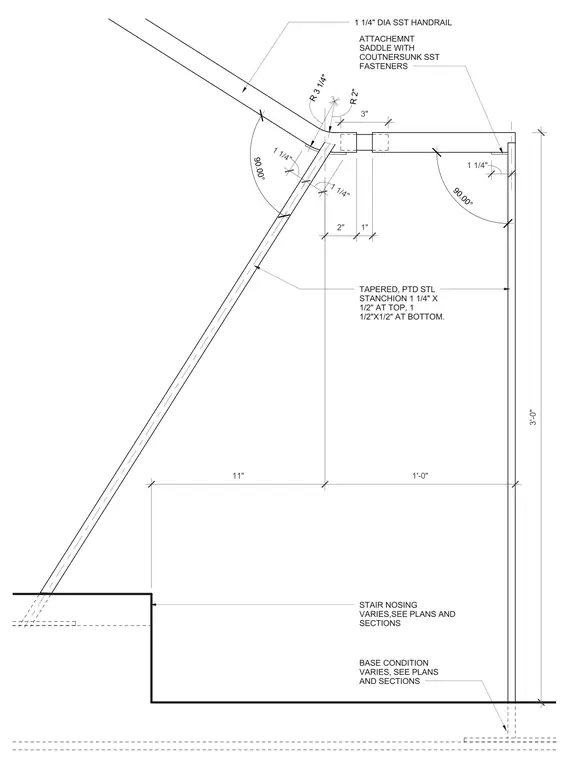

A 1 1/4 inch diameter stainless steel handrail is supported by tapered painted steel stanchions measuring 1 1/4 inches by 1/2 inch at the top and 1 1/2 inches by 1/2 inch at the bottom. The handrail connects to the stanchions via attachment saddles with countersunk stainless steel fasteners. Stair nosing and base conditions vary and are sized per plans and sections.
