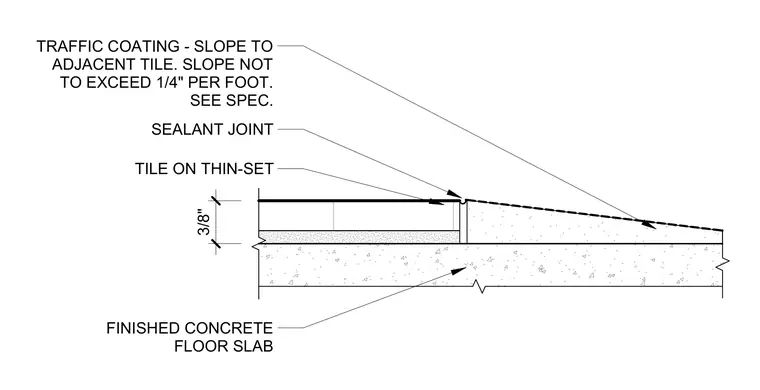

Tile on thin-set mortar meets a traffic coating applied over a finished concrete floor slab at a three-eighths-inch sealant joint. The traffic coating slopes toward the adjacent tile at a rate not exceeding one-quarter inch per foot.
TRAFFIC COATING - SLOPE TO ADJACENT TILE. SLOPE NOT TO EXCEED 1/4" PER FOOT. SEE SPEC. TILE ON THIN-SET FINISHED CONCRETE FLOOR SLAB 3/8" SEALANT JOINT
