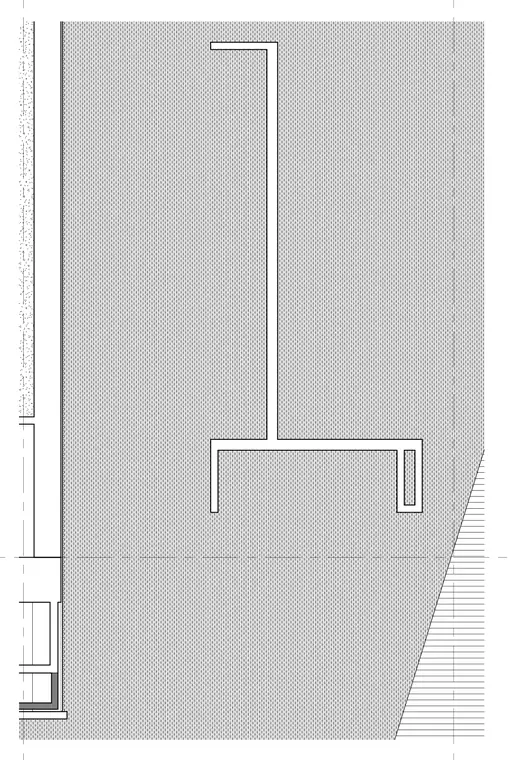

Suspended ceiling assembly featuring a main runner and perimeter trim channel against the wall surface. The system relies on standard ceiling grid components anchored within a finished interior ceiling space. Grid intersections and perimeter connections maintain level alignment across the room layout.
