A-D8JBX — Utility Roof Detail

Architectural · A-D8JBX

Utility Roof Detail

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Cold-formed Steel Composite Steel Timber / Wood

Elements

Ceilings Facades / Cladding Roofs Trusses

Text on the drawing

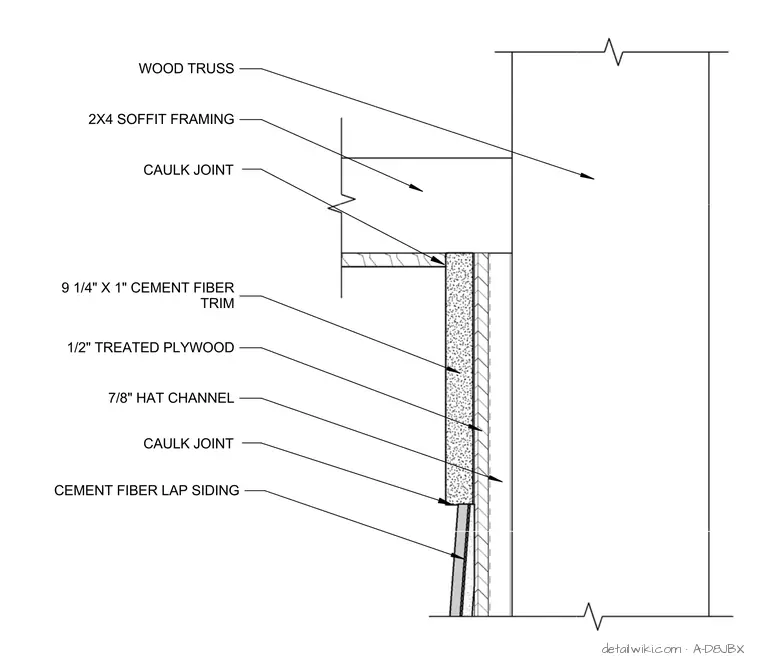

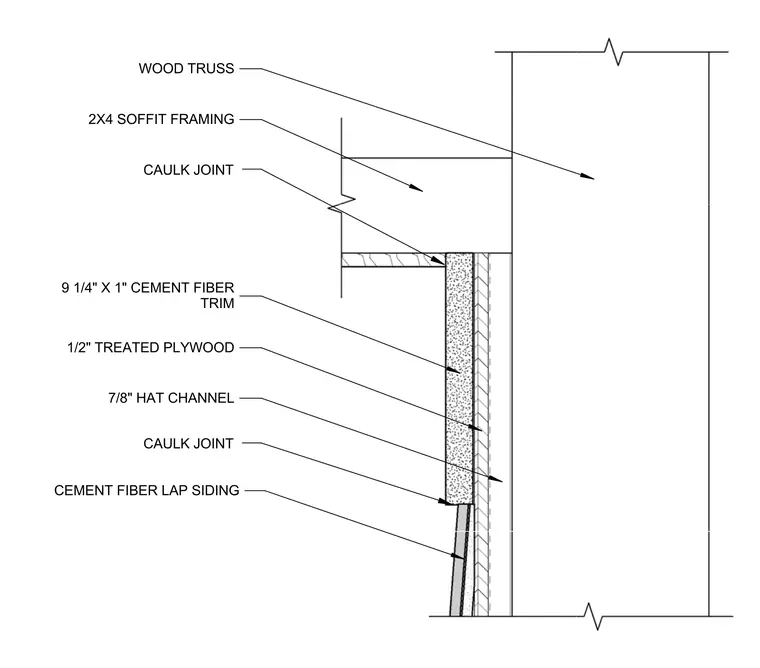

WOOD TRUSS 7/8" HAT CHANNEL CEMENT FIBER LAP SIDING CAULK JOINT CAULK JOINT 1/2" TREATED PLYWOOD 2X4 SOFFIT FRAMING 9 1/4" X 1" CEMENT FIBER TRIM
