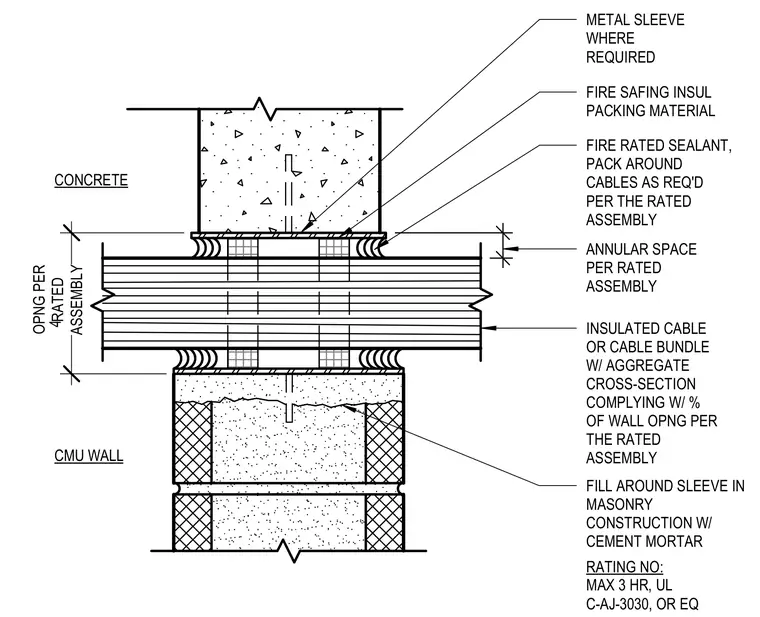

An insulated cable or cable bundle passes through an opening in a concrete or CMU wall via an optional metal sleeve. The annular space around the cables is packed with fire safing insulation and sealed with fire-rated sealant on both sides per the rated assembly requirements. In masonry construction, the void around the sleeve is filled with cement mortar. The assembly achieves up to a three-hour fire rating in accordance with UL C-AJ-3030 or equivalent.
4 11/16" OPNG PER RATED ASSEMBLY METAL SLEEVE WHERE REQUIRED FIRE SAFING INSUL PACKING MATERIAL FIRE RATED SEALANT, PACK AROUND CABLES AS REQ'D PER THE RATED ASSEMBLY ANNULAR SPACE PER RATED ASSEMBLY INSULATED CABLE OR CABLE BUNDLE W/ AGGREGATE CROSS-SECTION COMPLYING W/ % OF WALL OPNG PER THE RATED ASSEMBLY FILL AROUND SLEEVE IN MASONRY CONSTRUCTION W/ CEMENT MORTAR RATING NO: MAX 3 HR, UL C-AJ-3030, OR EQ CONCRETE CMU WALL
