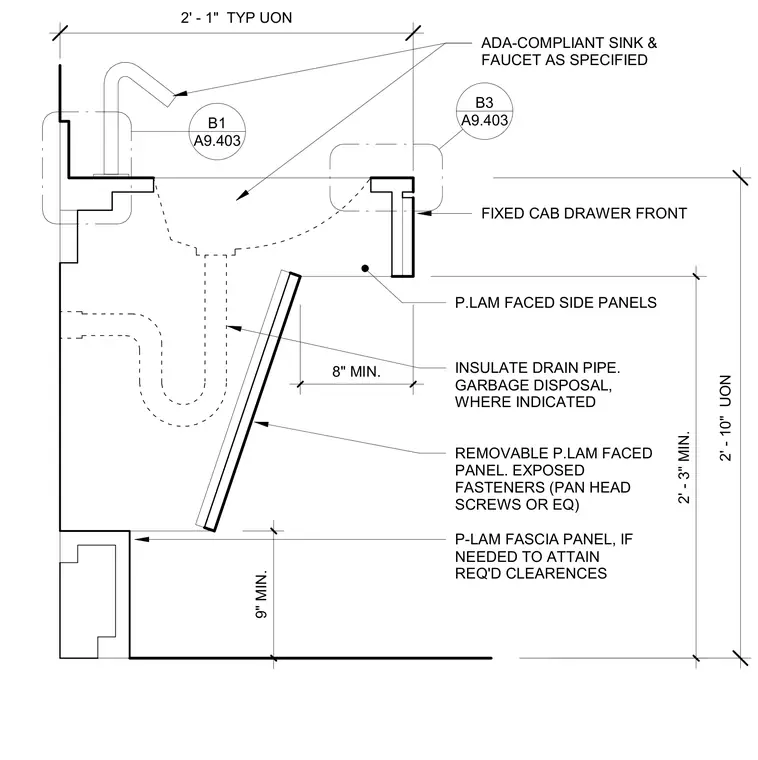

An accessible base cabinet configuration incorporates plastic laminate faced side panels and a fixed cabinet drawer front with a 2 foot 10 inch overall height. The millwork accommodates an ADA-compliant sink and faucet alongside an insulated drain pipe and optional garbage disposal. A removable plastic laminate faced panel with exposed pan head screw fasteners provides access below, while maintaining the required minimum 2 foot 3 inch knee clearance and 9 inch toe clearance. An optional plastic laminate fascia panel is included as needed to achieve required clearances.
2' - 10" UON FIXED CAB DRAWER FRONT A9.403 B3 2' - 1" TYP UON A9.403 B1 ADA-COMPLIANT SINK & FAUCET AS SPECIFIED REMOVABLE P.LAM FACED PANEL. EXPOSED FASTENERS (PAN HEAD SCREWS OR EQ) P.LAM FACED SIDE PANELS INSULATE DRAIN PIPE. GARBAGE DISPOSAL, WHERE INDICATED P-LAM FASCIA PANEL, IF NEEDED TO ATTAIN REQ'D CLEARENCES 2' - 3" MIN. 9" MIN. 8" MIN.
