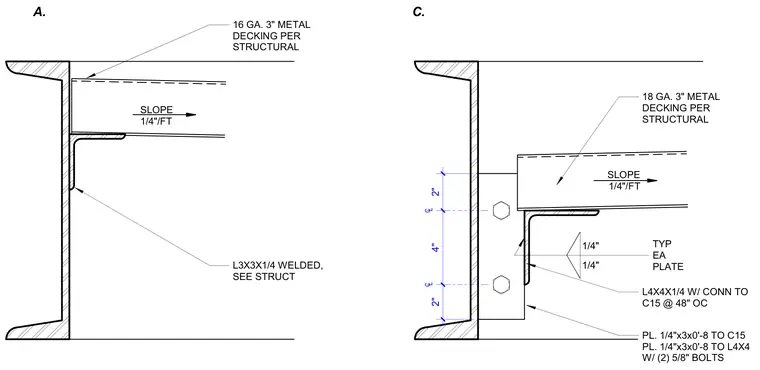

Sixteen-gauge three-inch metal decking bears on a welded L3x3x1/4 angle support sloped at one-quarter inch per foot. Eighteen-gauge three-inch metal decking rests on an L4x4x1/4 angle connected to a C15 channel spaced at forty-eight inches on center. A quarter-inch by three-inch by zero-foot-eight-inch plate welded to the channel connects to the angle using two five-eighth-inch bolts on each plate, with typical quarter-inch fillet welds.
L3X3X1/4 WELDED, SEE STRUCT SLOPE 1/4"/FT A. 16 GA. 3" METAL DECKING PER STRUCTURAL SLOPE 1/4"/FT C. CL CL 2" 4" 2" L4X4X1/4 W/ CONN TO C15 @ 48" OC PL. 1/4"x3x0'-8 TO C15 PL. 1/4"x3x0'-8 TO L4X4 W/ (2) 5/8" BOLTS TYP EA PLATE 1/4" 1/4" 18 GA. 3" METAL DECKING PER STRUCTURAL
