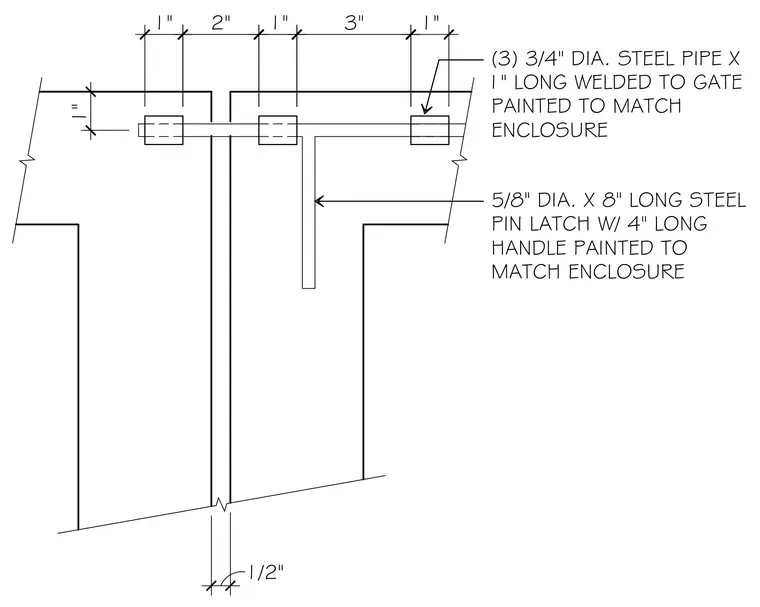

Three three-quarter-inch diameter steel pipes measuring one inch long are welded to the gate and painted to match the enclosure to serve as pin guides. A five-eighth-inch diameter by eight-inch long steel pin latch with a four-inch long handle slides through the pipe guides and is finished with a matching paint coating.
(3) 3/4" DIA. STEEL PIPE X 1" LONG WELDED TO GATE PAINTED TO MATCH ENCLOSURE 5/8" DIA. X 8" LONG STEEL PIN LATCH W/ 4" LONG HANDLE PAINTED TO MATCH ENCLOSURE 1" 1" 2" 1" 3" 1" 1/2" 7 s ---------- ^ 7 ! ------------ ^ 7 ! ------------ 7 ~ J r c: ■v 7^
