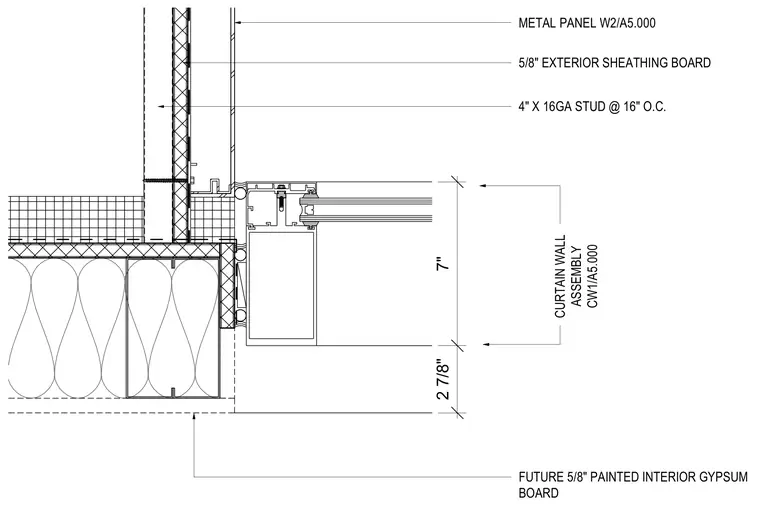

Junction between a curtain wall assembly and an exterior metal panel wall. The wall framing consists of four-inch 16-gauge steel studs spaced at sixteen inches on center, faced with exterior sheathing board and a future five-eighths-inch painted interior gypsum board. The curtain wall framing meets the wall assembly with specific dimensional clearances of seven inches and two and seven-eighths inches.
2 7/8" 7" CURTAIN WALL ASSEMBLY CW1/A5.000 METAL PANEL W2/A5.000 FUTURE 5/8" PAINTED INTERIOR GYPSUM BOARD 5/8" EXTERIOR SHEATHING BOARD 4" X 16GA STUD @ 16" O.C.
