Base Cabinet Integration with Equipment and Countertop

Materials

Elements

Walls Partitions Doors Floors / Slabs Millwork / Casework

About this detail

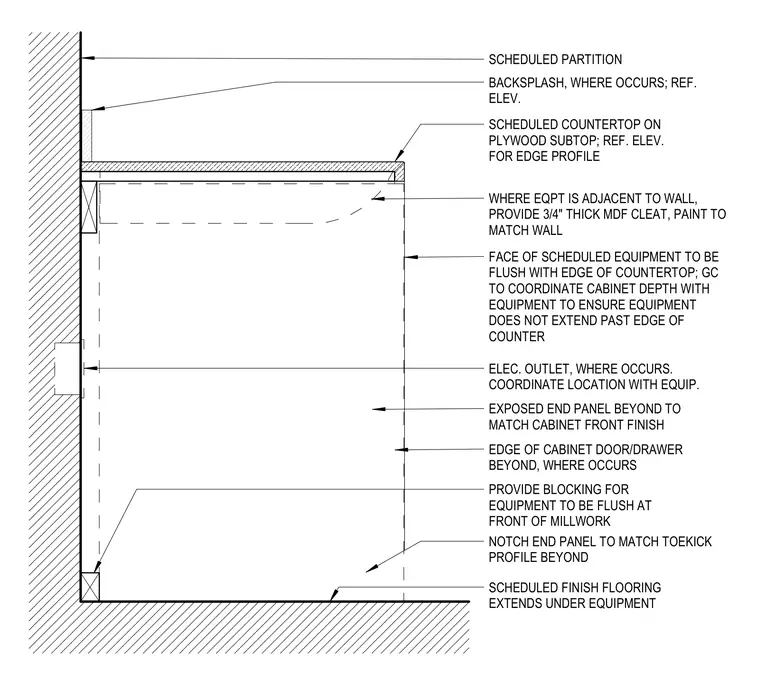

A scheduled partition supports a base cabinet assembly where scheduled finish flooring extends continuously under the unit. The scheduled countertop sits on a plywood subtop and aligns flush with the face of the scheduled equipment. A three-quarter-inch thick medium-density fiberboard cleat is provided where equipment meets the wall and is painted to match the wall face. Additional wood blocking is installed to keep the equipment flush at the front of the millwork. The end panel is notched to match the profile of the toekick beyond, with exposed end panels finished to match the cabinet front. An electrical outlet is coordinated with the equipment location.
