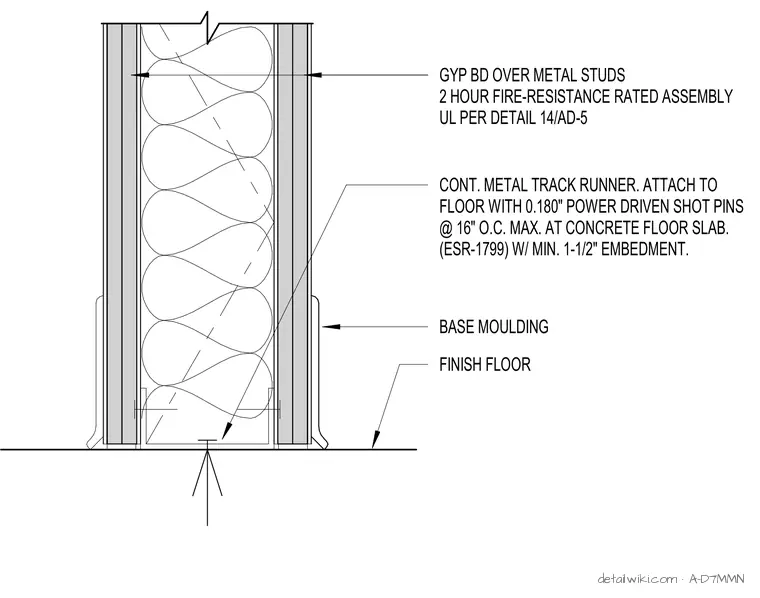

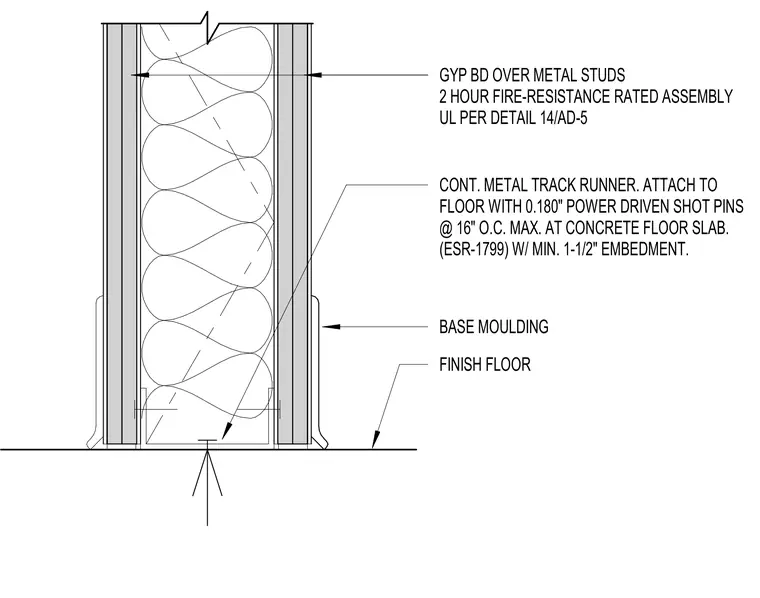

This two-hour fire-resistance rated assembly consists of gypsum board over metal studs, anchored to a concrete floor slab via a continuous metal track runner. The track is secured to the slab using 0.180-inch diameter power-driven shot pins spaced at a maximum of 16 inches on center, with a minimum embedment of 1-1/2 inches per ESR-1799. Base moulding is installed at the finish floor level on both sides of the partition.
Text on the drawing
GYP BD OVER METAL STUDS 2 HOUR FIRE-RESISTANCE RATED ASSEMBLY UL PER DETAIL 14/AD-5 CONT. METAL TRACK RUNNER. ATTACH TO FLOOR WITH 0.180" POWER DRIVEN SHOT PINS @ 16" O.C. MAX. AT CONCRETE FLOOR SLAB. (ESR-1799) W/ MIN. 1-1/2" EMBEDMENT. BASE MOULDING FINISH FLOOR 2 HOUR FIRE RATED PARTION 1 RGA PROJECT NO: OWNER PROJECT NO: DRAWN BY: CHEK'D BY: COPYRIGHT RGA, OFFICE OF ARCHITECTURAL DESIGN SHEET TITLE: DETAILS
