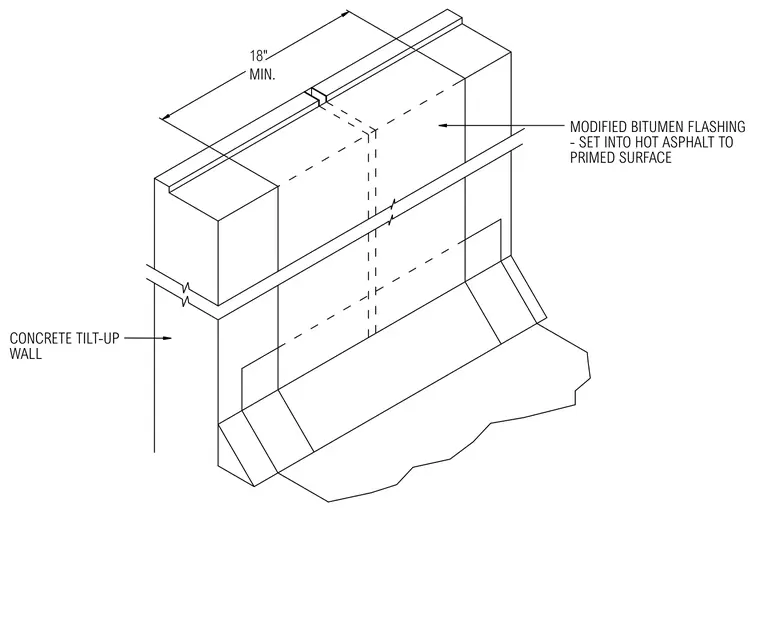

An eighteen-inch minimum width modified bitumen flashing is set into hot asphalt over a primed surface at the concrete tilt-up wall parapet joint.
18" MIN. MODIFIED BITUMEN FLASHING - SET INTO HOT ASPHALT TO PRIMED SURFACE CONCRETE TILT-UP WALL
