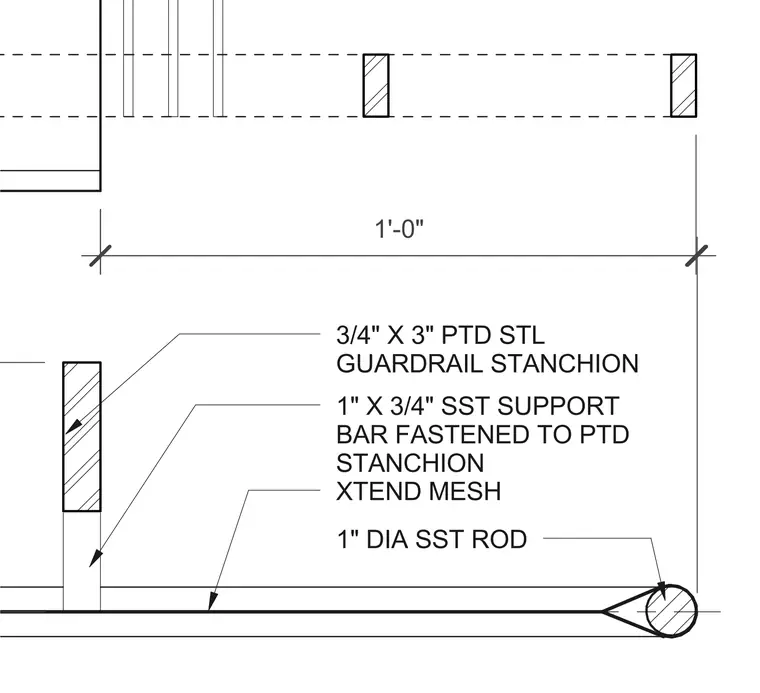

A guardrail stanchion assembly constructed with a three-quarter inch by three-inch painted steel guardrail stanchion. A one-inch by three-quarter inch stainless steel support bar is fastened to the painted stanchion. The infill consists of expanded metal mesh and a one-inch diameter stainless steel rod spaced at a one-foot offset.
3/4" X 3" PTD STL GUARDRAIL STANCHION XTEND MESH 1" DIA SST ROD 1'-0" 1'-0" 1" X 3/4" SST SUPPORT BAR FASTENED TO PTD STANCHION
