This wall-mounted steel ladder features vertical stringers made from 1 1/2-inch by 3/8-inch steel bars and 3/4-inch diameter solid rungs spaced at a maximum of 1 foot on center. The ladder is secured to concrete or concrete masonry unit walls using 3-inch by 1/4-inch mounting brackets welded to the stringers and fastened with 1/4-inch expansion bolts featuring a minimum 3-inch embedment, or #10 screws connected to a backing plate. The assembly maintains a 4-inch clear distance from the wall and extends with an overall width clearance between 16 inches and 16 1/4 inches. The top rungs extend a minimum of 3 feet 6 inches above the finished floor level, while the bottom of the ladder sits 1 foot above the pit floor, with total height varying as required.

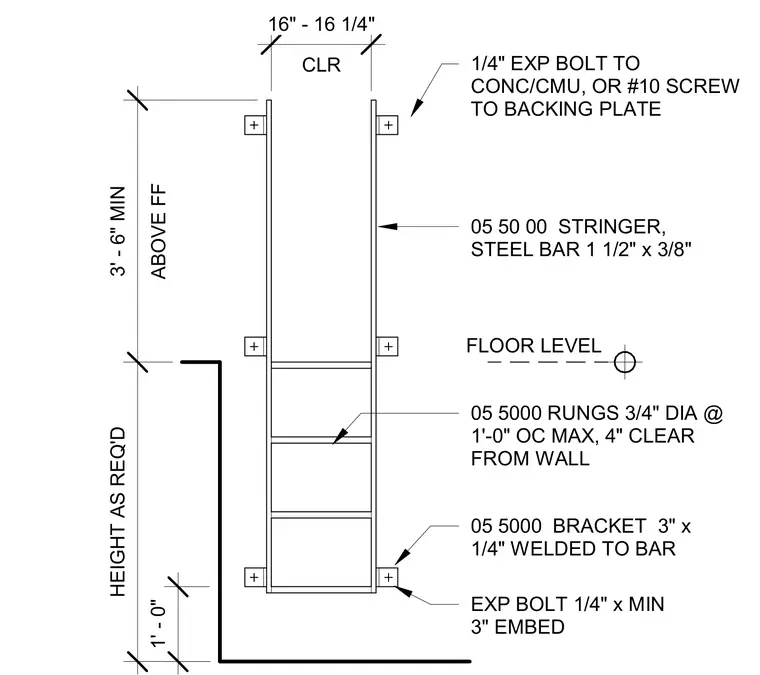

FLOOR LEVEL 05 5000 BRACKET 3" x 1/4" WELDED TO BAR EXP BOLT 1/4" x MIN 3" EMBED 05 50 00 STRINGER, STEEL BAR 1 1/2" x 3/8" 05 5000 RUNGS 3/4" DIA @ 1'-0" OC MAX, 4" CLEAR FROM WALL 1/4" EXP BOLT TO CONC/CMU, OR #10 SCREW TO BACKING PLATE HEIGHT AS REQ'D ABOVE FF 3' - 6" MIN CLR 16" - 16 1/4" 1' - 0"
