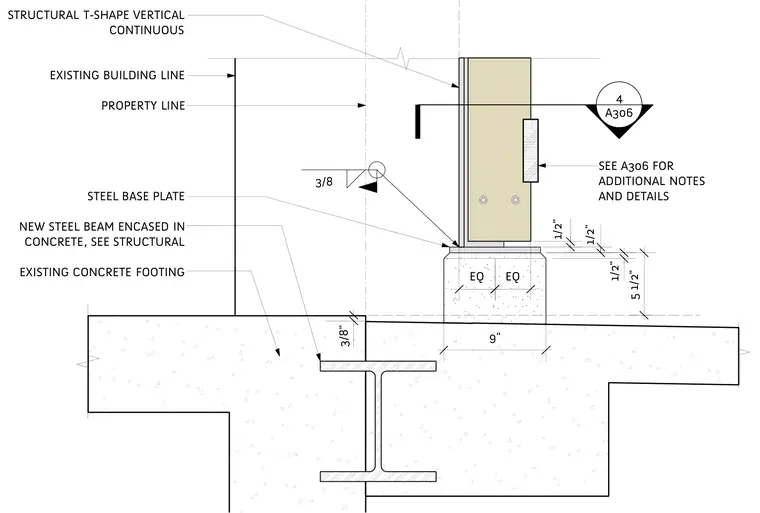

A continuous structural tee vertical member connects to a steel base plate anchored to a concrete footing. The assembly sits near the existing building line and property line. A new steel beam encased in concrete is positioned adjacent to the existing concrete footing with specified clearances. A three-eighths inch fillet weld secures the connection at the base plate. Additional notes and details are referenced on sheet A306.
5 1/2" 1/2" 3/8" 1/2" 1/2" EQ 9" STRUCTURAL T-SHAPE VERTICAL CONTINUOUS EXISTING BUILDING LINE PROPERTY LINE STEEL BASE PLATE NEW STEEL BEAM ENCASED IN CONCRETE, SEE STRUCTURAL EXISTING CONCRETE FOOTING SEE A306 FOR ADDITIONAL NOTES AND DETAILS EQ 4 A306 3/8
