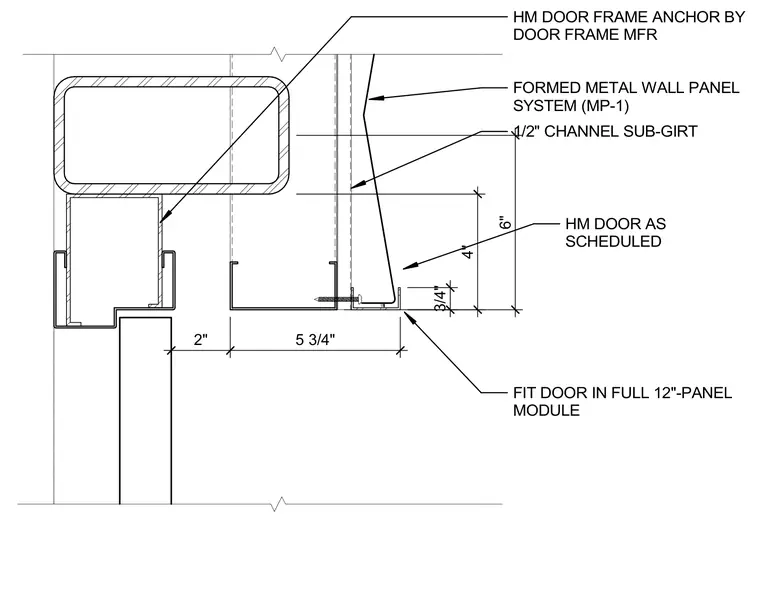

This plan detail shows a hollow metal door frame set adjacent to a formed metal wall panel system mounted on half-inch channel sub-girts. The door frame is secured using a hollow metal door frame anchor provided by the door frame manufacturer. The assembly maintains specific dimensional clearances including a two-inch jamb reveal, five and three-quarter inch spacing, and a three-quarter inch to four-inch layout to fit the door within a full twelve-inch panel module.
FORMED METAL WALL PANEL SYSTEM (MP-1) 1/2" CHANNEL SUB-GIRT HM DOOR AS SCHEDULED 3/4" 2" 5 3/4" FIT DOOR IN FULL 12"-PANEL MODULE 4" 6" HM DOOR FRAME ANCHOR BY DOOR FRAME MFR
