Architectural · A-D72NQ

Panelboard - Flush Mount

Materials

Elements

About this detail

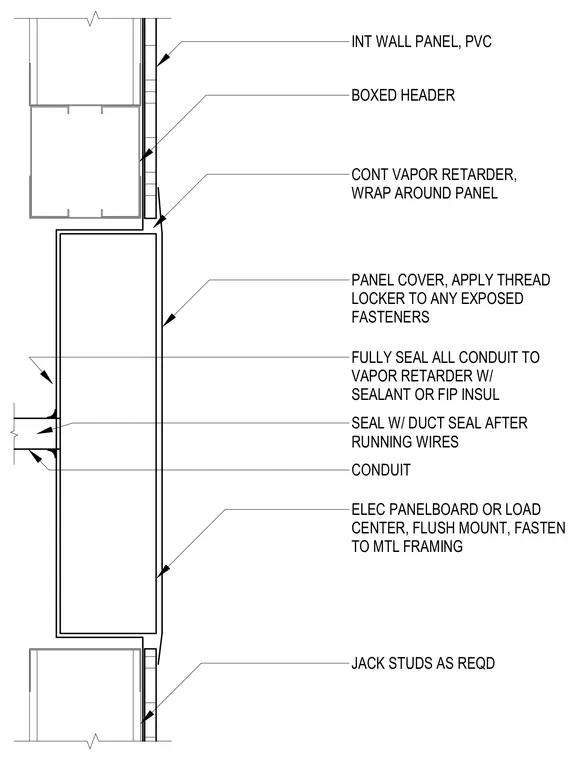

An electrical panelboard or load center is recess-mounted within a metal stud interior wall supported by jack studs and boxed headers as required. A continuous vapor retarder wraps around the panel enclosure, and all penetrating conduits are fully sealed to the vapor retarder using sealant or foam-in-place insulation, with duct seal applied after running wires. The panel cover is secured with exposed fasteners treated with a thread locker, and interior PVC wall panels finish the surrounding wall surface.
