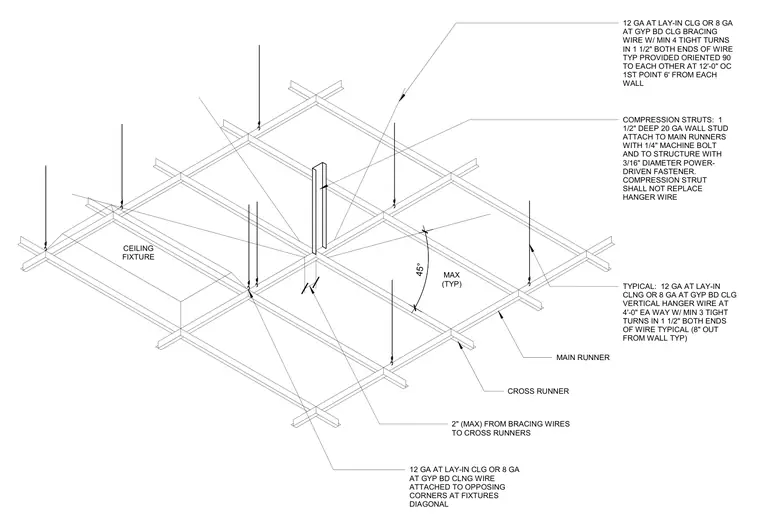

Suspended ceiling suspension relies on twelve-gauge wire for lay-in ceilings or eight-gauge wire for gypsum board ceilings spaced at four feet on center each way, featuring a minimum of three tight turns in one and a half inches at both ends. Bracing wires use twelve-gauge for lay-in or eight-gauge for gypsum board, with a minimum of four tight turns in one and a half inches, oriented ninety degrees to each other at twelve feet on center with the first point six feet from each wall. Compression struts consist of one and a half-inch deep twenty-gauge wall studs attached to main runners with quarter-inch machine bolts and to the structure with three-sixteenths-inch diameter power-driven fasteners, remaining supplementary to hanger wires. Ceiling fixtures require diagonal wires attached to opposing corners at a maximum of forty-five degrees. Bracing wires must maintain a maximum distance of two inches from cross runners.
TYPICAL: 12 GA AT LAY-IN CLNG OR 8 GA AT GYP BD CLG VERTICAL HANGER WIRE AT 4'-0" EA WAY W/ MIN 3 TIGHT TURNS IN 1 1/2" BOTH ENDS OF WIRE TYPICAL (8" OUT FROM WALL TYP) 12 GA AT LAY-IN CLG OR 8 GA AT GYP BD CLG BRACING WIRE W/ MIN 4 TIGHT TURNS IN 1 1/2" BOTH ENDS OF WIRE TYP PROVIDED ORIENTED 90 TO EACH OTHER AT 12'-0" OC 1ST POINT 6' FROM EACH WALL COMPRESSION STRUTS: 1 1/2" DEEP 20 GA WALL STUD ATTACH TO MAIN RUNNERS WITH 1/4" MACHINE BOLT AND TO STRUCTURE WITH 3/16" DIAMETER POWER- DRIVEN FASTENER. COMPRESSION STRUT SHALL NOT REPLACE HANGER WIRE MAIN RUNNER CROSS RUNNER 2" (MAX) FROM BRACING WIRES TO CROSS RUNNERS CEILING FIXTURE 45° MAX (TYP) 12 GA AT LAY-IN CLG OR 8 GA AT GYP BD CLNG WIRE ATTACHED TO OPPOSING CORNERS AT FIXTURES DIAGONAL
