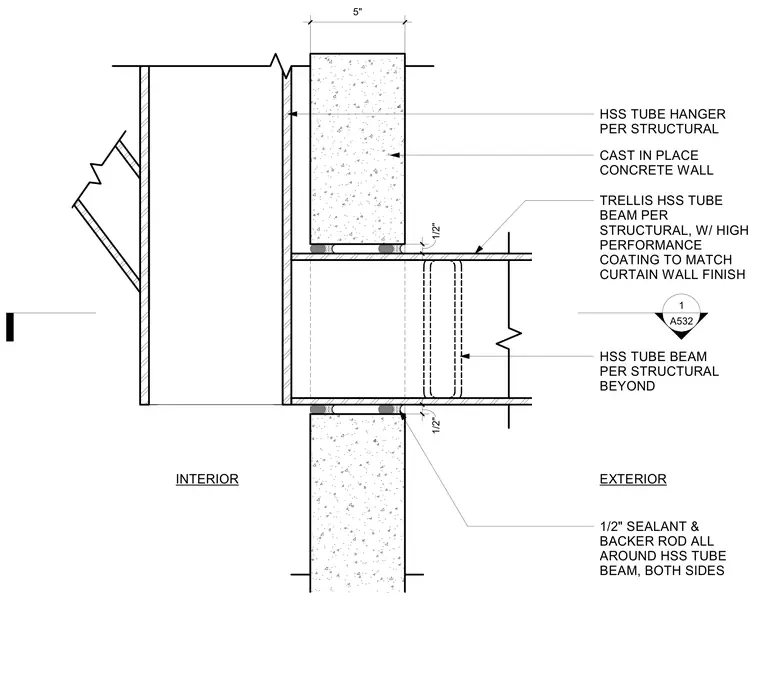

A hollow structural section tube beam passes through a joint in a cast-in-place concrete wall. The hollow structural section tube hanger is anchored to the interior structure. The trellis hollow structural section tube beam features a high-performance coating matching the curtain wall finish. A one-half-inch sealant and backer rod is applied all around the tube beam on both sides.
1 A532 INTERIOR EXTERIOR CAST IN PLACE CONCRETE WALL HSS TUBE HANGER PER STRUCTURAL TRELLIS HSS TUBE BEAM PER STRUCTURAL, W/ HIGH PERFORMANCE COATING TO MATCH CURTAIN WALL FINISH HSS TUBE BEAM PER STRUCTURAL BEYOND 1/2" SEALANT & BACKER ROD ALL AROUND HSS TUBE BEAM, BOTH SIDES 1/2" 1/2" 5"
