Architectural · A-D6F62

Front Desk Island Section with Integrated Shoe Storage and Acrylic Screen

Materials

Elements

Millwork / Casework Roof / Floor Openings

About this detail

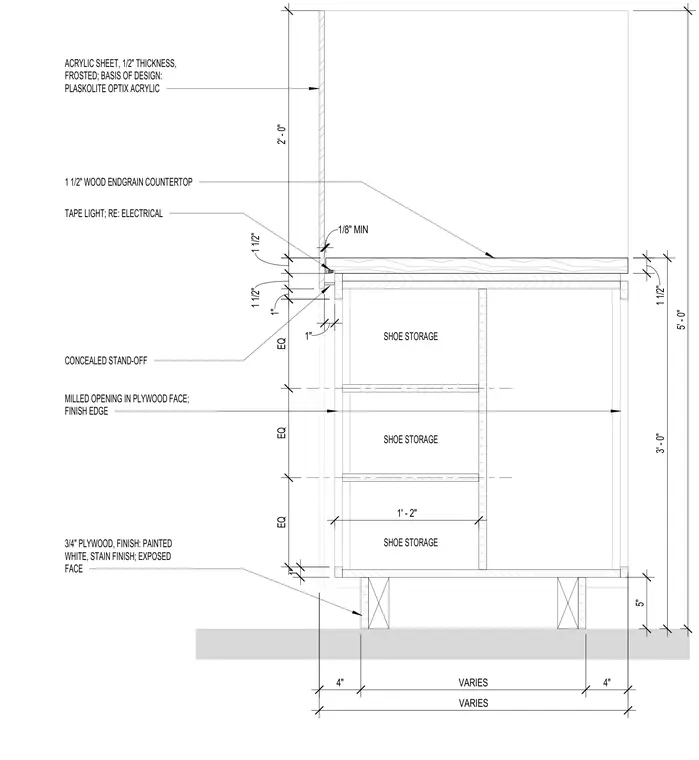

This millwork section detail shows a custom front desk island constructed from three-quarter-inch plywood with painted white and stain finishes on the exposed faces. The assembly features a one-and-a-half-inch wood endgrain countertop supported by the plywood casework, with an integrated tape light concealed beneath the counter overhang on a concealed stand-off. A one-half-inch thick frosted acrylic sheet, specified as Plaskolite Optix acrylic, extends upward from the rear of the counter behind a milled opening in the plywood face. The base of the island sits on four-inch wood blocking above the finished floor, housing interior shoe storage compartments spaced equally across the varying width of the unit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
