Fiberglass Reinforced Plastic Panel Wall Layout and Trim Detail

Materials

Elements

About this detail

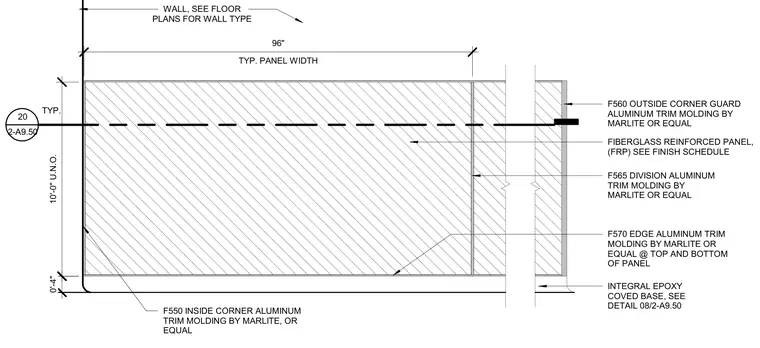

Fiberglass reinforced panels are installed over wall assemblies with a typical panel width of ninety-six inches and a height of ten feet unless noted otherwise. Vertical joints utilize F565 division aluminum trim moldings, while inside corners feature F550 inside corner aluminum trim moldings. Outside corners are finished with F560 outside corner guards, and top and bottom edges are secured with F570 edge aluminum trim moldings. An integral epoxy coved base transitions the wall panels to the floor at the base.
