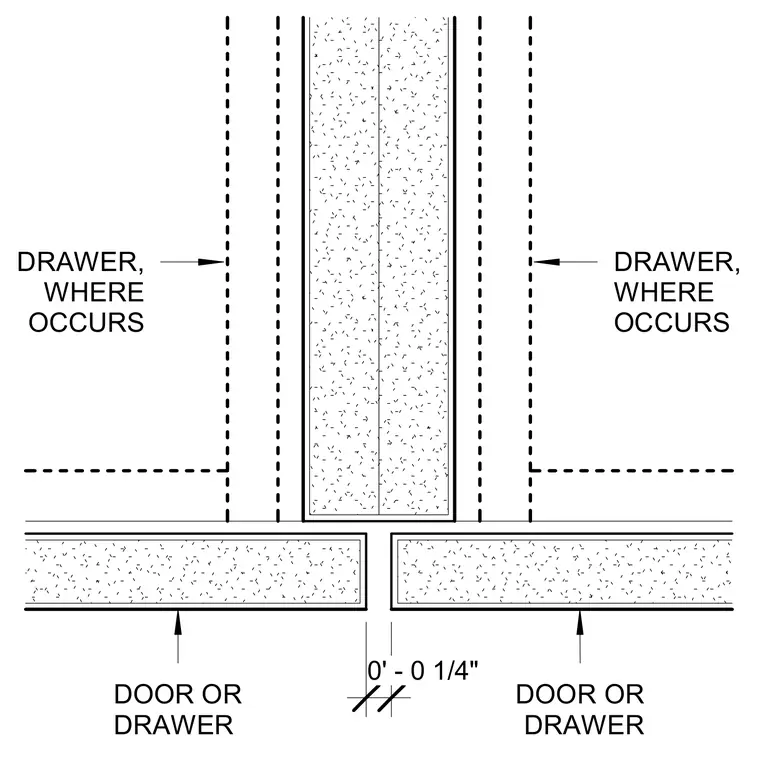

Adjacent millwork doors or drawers meet with a measured gap of zero feet and one-quarter inch. Dashed lines indicate the operating paths or returns for drawers where they occur adjacent to the partition. Solid boundary lines represent the casework faces and internal divider components.
DOOR OR DRAWER DOOR OR DRAWER 0' - 0 1/4" DRAWER, WHERE OCCURS DRAWER, WHERE OCCURS
