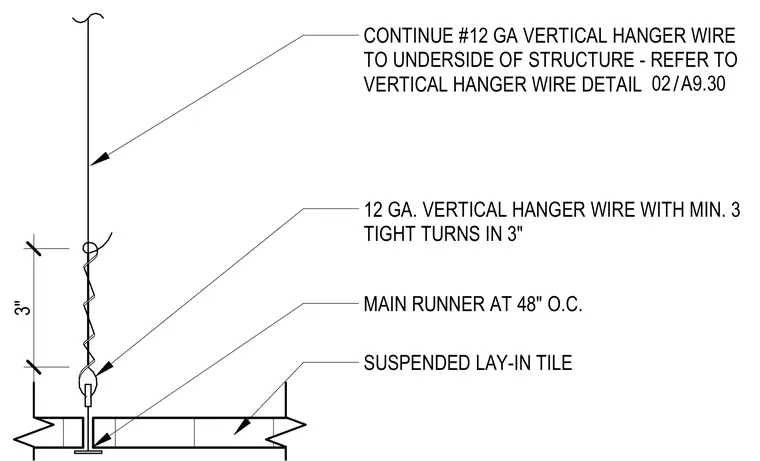

A suspended lay-in tile ceiling features main runners spaced at forty-eight inches on center. The ceiling grid is supported by number twelve gauge vertical hanger wires extending to the underside of the structure above. Each wire connection incorporates a minimum of three tight turns within a three-inch vertical span.
MAIN RUNNER AT 48" O.C. SUSPENDED LAY-IN TILE CONTINUE #12 GA VERTICAL HANGER WIRE TO UNDERSIDE OF STRUCTURE - REFER TO VERTICAL HANGER WIRE DETAIL 12 GA. VERTICAL HANGER WIRE WITH MIN. 3 TIGHT TURNS IN 3" 3" / 02 A9.30
