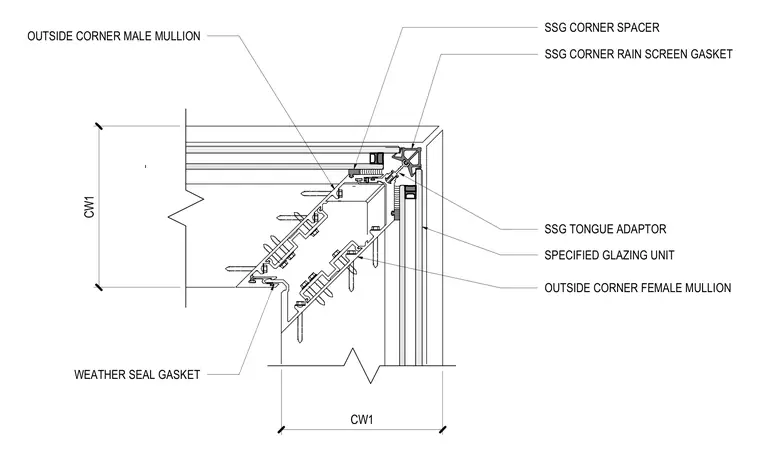

An outside corner of a structural silicone glazing curtain wall system incorporates an outside corner male mullion and an outside corner female mullion joined together. The specified glazing unit is secured with an SSG tongue adaptor and an SSG corner spacer. A weather seal gasket and an SSG corner rain screen gasket provide weather-tightness at the corner junction.
SPECIFIED GLAZING UNIT SSG CORNER RAIN SCREEN GASKET SSG TONGUE ADAPTOR OUTSIDE CORNER MALE MULLION OUTSIDE CORNER FEMALE MULLION WEATHER SEAL GASKET SSG CORNER SPACER CW1 CW1
