Curtain Wall Floor Closure and Mineral Fiber Firesafing at Level 10

Materials

Elements

About this detail

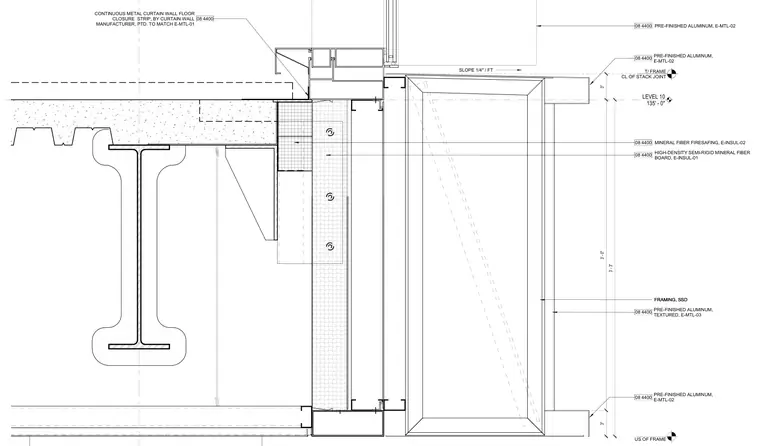

Curtain wall intersection at the structural slab edge and steel floor framing at Level 10. A continuous metal curtain wall floor closure strip spans between the slab and the aluminum framing assembly. Mineral fiber firesafing is installed within the cavity alongside high-density semi-rigid mineral fiber board insulation. Pre-finished textured aluminum panels and framing components complete the exterior envelope assembly.
