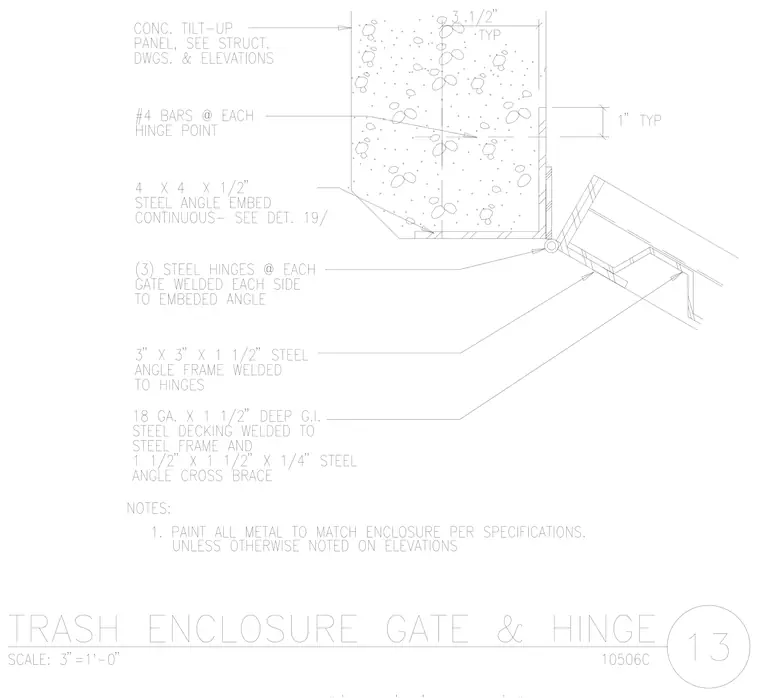

A concrete tilt-up panel supports a continuous 4 x 4 x 1/2 inch steel angle embed with number four reinforcing bars at each hinge point. Three steel hinges are welded on each side to the embedded angle and to a 3 x 3 x 1 1/2 inch steel angle frame. An 18 gauge by 1 1/2 inch deep galvanized steel decking is welded to the steel frame and reinforced with a 1 1/2 x 1 1/2 x 1/4 inch steel angle cross brace. All metal is painted to match the enclosure per specifications unless otherwise noted on elevations.
