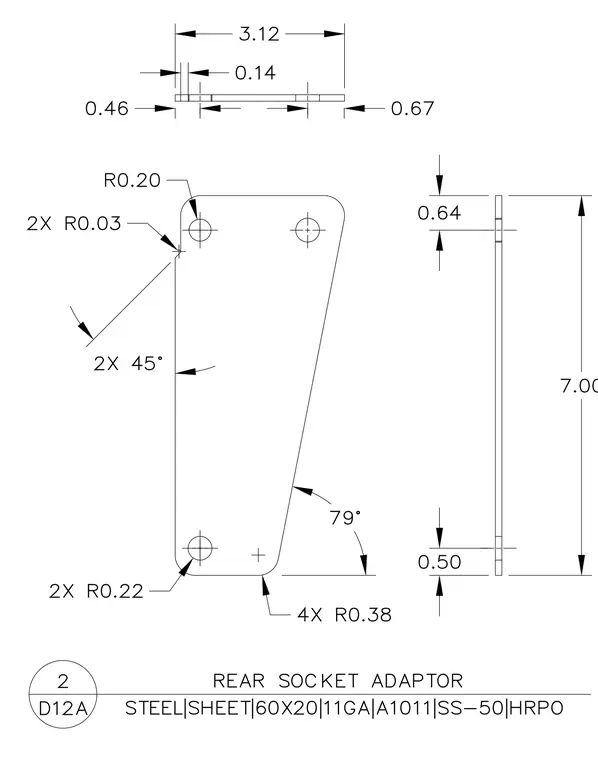

Fabrication dimensions and geometry for a rear socket adaptor plate formed from 11 gauge hot-rolled pickled and oiled A1011 SS-50 steel sheet. The plate measures 7.00 inches in overall length with multiple hole locations defined by coordinate dimensions, 45-degree corner bevels, and various radii including R0.20, R0.22, and R0.38. Top and side orthographic views provide precise hole centerlines, edge distances, and a 79-degree angled edge profile.
2X R0.22 R0.20 2X R0.03 4X R0.38 7.00 0.50 0.64 79° 2X 45° 3.12 0.46 0.67 0.14 REAR SOCKET ADAPTOR 2 D12A STEEL|SHEET|60X20|11GA|A1011|SS-50|HRPO [ I I I ] I
