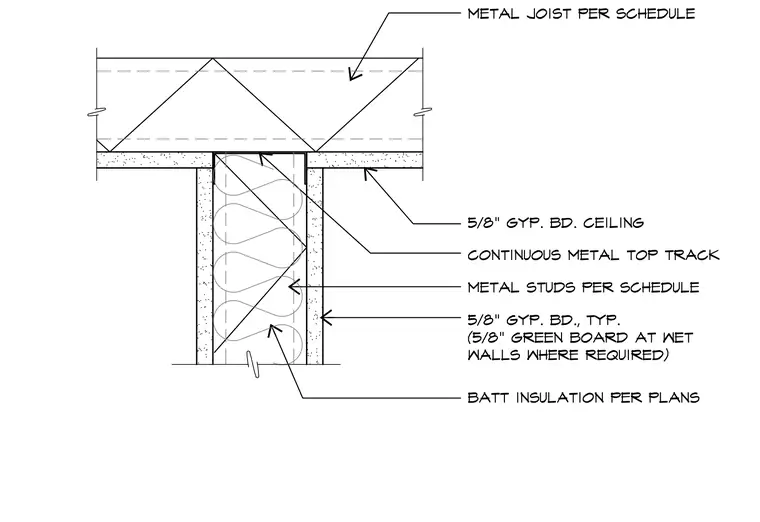

Metal studs per schedule extend upward into a continuous metal top track anchored below the overhead metal joist per schedule. The wall cavity contains batt insulation per plans, finished on both sides with five-eighths-inch gypsum board typical, with five-eighths-inch green board specified at wet walls where required. The ceiling assembly consists of five-eighths-inch gypsum board ceiling panels framing up tight against the partition tracks.
