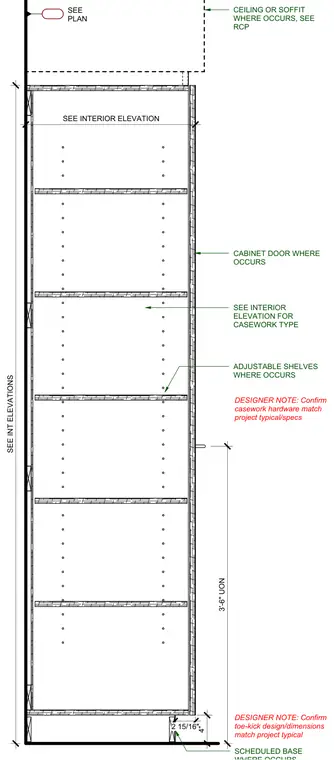

This elevation detail shows a tall architectural casework unit with multiple adjustable shelves and cabinet doors where indicated. The unit extends up to a ceiling or soffit, with dimensions coordinated through the reflected ceiling plan and interior elevations. The base includes a scheduled toe-kick with specific vertical clearances, and hardware is confirmed against project specifications.
SEE INTERIOR ELEVATION SEE INTERIOR ELEVATION FOR CASEWORK TYPE 4" 2 15/16" CEILING OR SOFFIT WHERE OCCURS, SEE RCP 3'-6" UON SEE INT ELEVATIONS DESIGNER NOTE: Confirm toe-kick design/dimensions match project typical DESIGNER NOTE: Confirm casework hardware match project typical/specs SEE PLAN CABINET DOOR WHERE OCCURS SCHEDULED BASE ADJUSTABLE SHELVES WHERE OCCURS
