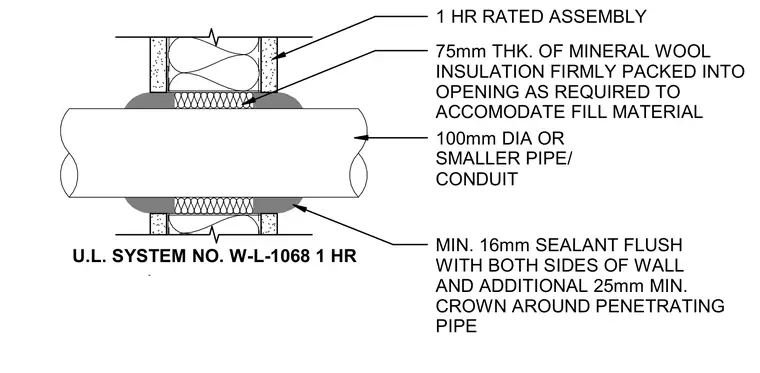

A one-hundred-millimeter diameter or smaller pipe or conduit passes through a one-hour rated wall assembly. The annular space contains seventy-five-millimeter thick mineral wool insulation firmly packed into the opening to accommodate the fill material. A minimum sixteen-millimeter sealant is applied flush with both sides of the wall, featuring an additional twenty-five-millimeter minimum crown around the penetrating pipe. The installation complies with Underwriters Laboratories system number W-L-1068 for a one-hour fire rating.
1 HR RATED ASSEMBLY 100mm DIA OR SMALLER PIPE/ CONDUIT MIN. 16mm SEALANT FLUSH WITH BOTH SIDES OF WALL AND ADDITIONAL 25mm MIN. CROWN AROUND PENETRATING PIPE 75mm THK. OF MINERAL WOOL INSULATION FIRMLY PACKED INTO OPENING AS REQUIRED TO ACCOMODATE FILL MATERIAL U.L. SYSTEM NO. W-L-1068 1 HR
