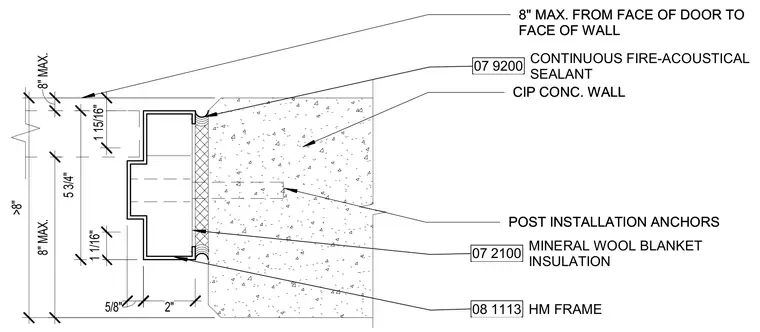

A hollow metal frame is set into a cast-in-place concrete wall and secured with post-installation anchors. Mineral wool blanket insulation packs the space between the frame and the concrete substrate. Continuous fire-acoustical sealant joints seal both sides of the frame against the concrete wall faces. The door frame is positioned with a maximum distance of eight inches from the face of the door to the face of the wall.
5 3/4" 1 1/16" 2" 5/8" 1 15/16" >8" 08 1113 HM FRAME 07 2100 MINERAL WOOL BLANKET INSULATION CIP CONC. WALL POST INSTALLATION ANCHORS 07 9200 CONTINUOUS FIRE-ACOUSTICAL SEALANT 8" MAX. FROM FACE OF DOOR TO FACE OF WALL 8" MAX. 8" MAX. CIP CONC. WALL POST INSTALLATION ANCHORS 8" MAX. FROM FACE OF DOOR TO FACE OF WALL
