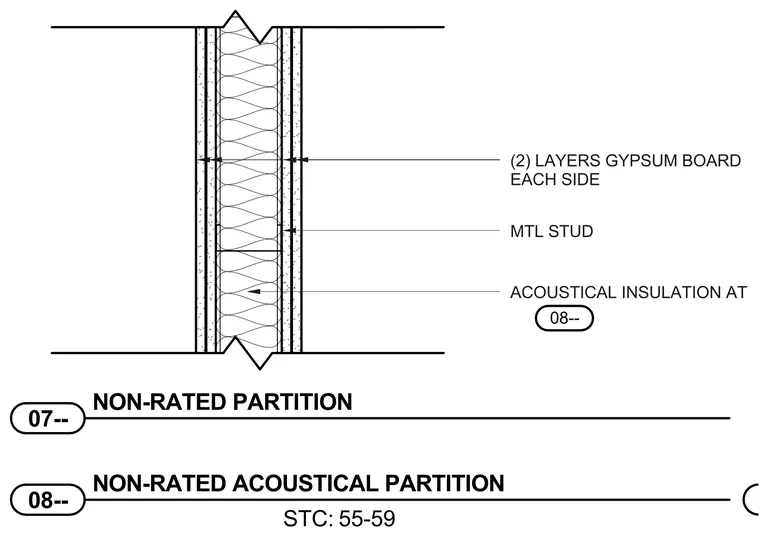

This non-rated acoustical partition assembly consists of metal studs framed with acoustical insulation placed in the cavity. Two layers of gypsum board are installed on each side of the metal stud framing to achieve an STC rating between 55 and 59.
ACOUSTICAL INSULATION AT (2) LAYERS GYPSUM BOARD EACH SIDE STC: 08-- NON-RATED ACOUSTICAL PARTITION 55-59 07-- NON-RATED PARTITION MTL STUD 08--
