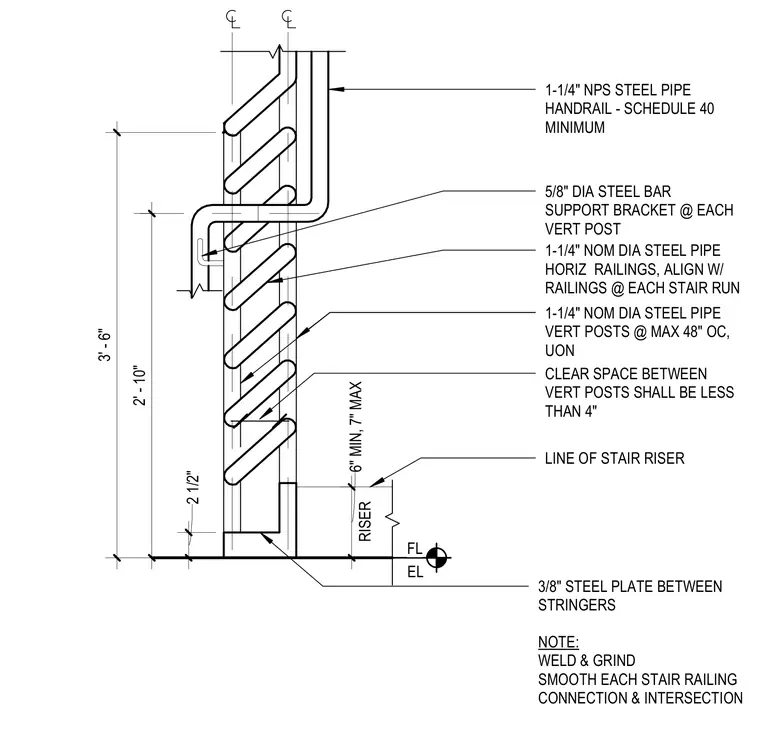

This stair railing transition assembly features a 1-1/4 inch nominal pipe size Schedule 40 minimum steel pipe handrail supported by 5/8 inch diameter steel bar support brackets at each vertical post. The 1-1/4 inch nominal diameter horizontal steel pipe railings align with the railings at each stair run, framed by 1-1/4 inch nominal diameter steel pipe vertical posts spaced at a maximum of 48 inches on center unless otherwise noted. Clear space between vertical posts remains less than 4 inches to meet code requirements, anchored above a 3/8 inch steel plate between stringers located at the stair riser line. All stair railing connections and intersections are welded and ground smooth.
EL FL 6" MIN, 7" MAX RISER 2' - 10" 2 1/2" 3' - 6" 1-1/4" NPS STEEL PIPE HANDRAIL - SCHEDULE 40 MINIMUM 5/8" DIA STEEL BAR SUPPORT BRACKET @ EACH VERT POST 1-1/4" NOM DIA STEEL PIPE HORIZ RAILINGS, ALIGN W/ RAILINGS @ EACH STAIR RUN 1-1/4" NOM DIA STEEL PIPE VERT POSTS @ MAX 48" OC, UON CLEAR SPACE BETWEEN VERT POSTS SHALL BE LESS THAN 4" LINE OF STAIR RISER 3/8" STEEL PLATE BETWEEN STRINGERS NOTE: WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & INTERSECTION
