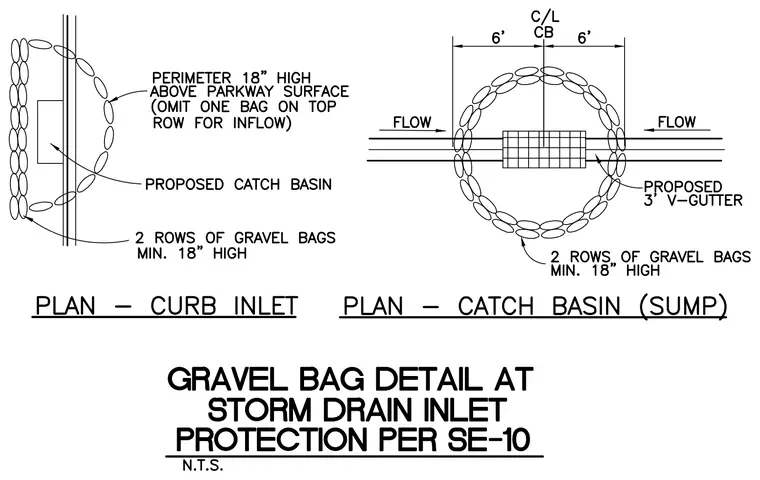

Temporary sediment control measures use gravel bags around storm drainage inlets. Two rows of gravel bags at least eighteen inches high are arranged in a circular configuration around the proposed catch basin sump, with a three-foot v-gutter and flow lines indicated. A separate plan view shows a curb inlet protected by a perimeter of gravel bags eighteen inches high above the parkway surface, omitting one bag on the top row for inflow.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
