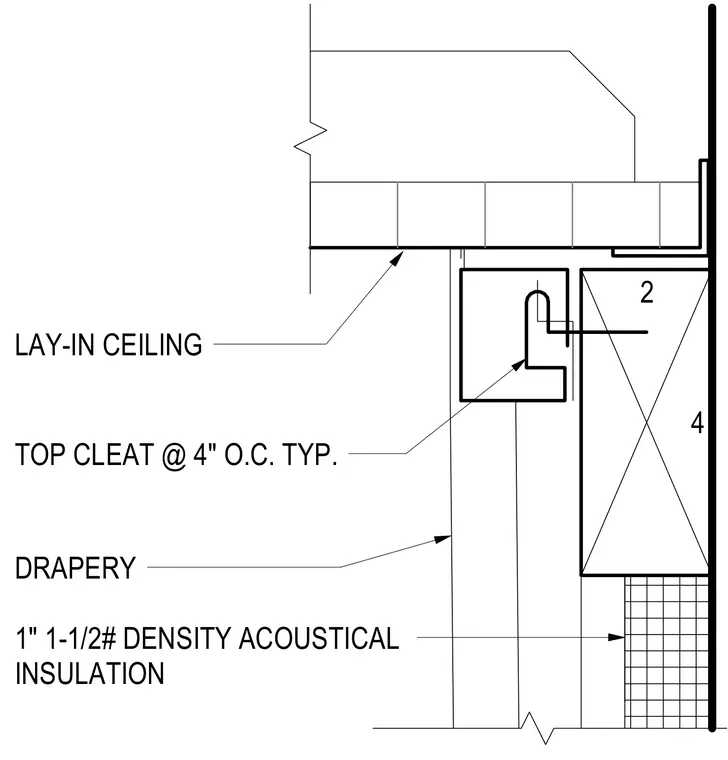

A lay-in ceiling meets a drapery pocket detail featuring a top cleat spaced at four inches on center typically. The assembly incorporates one-inch thick acoustical insulation with a one and a half pound density positioned above the drapery track.
2 4 LAY-IN CEILING TOP CLEAT @ 4" O.C. TYP. DRAPERY 1" 1-1/2# DENSITY ACOUSTICAL INSULATION
